SKU: M-C-UCP210-200D1-NTN

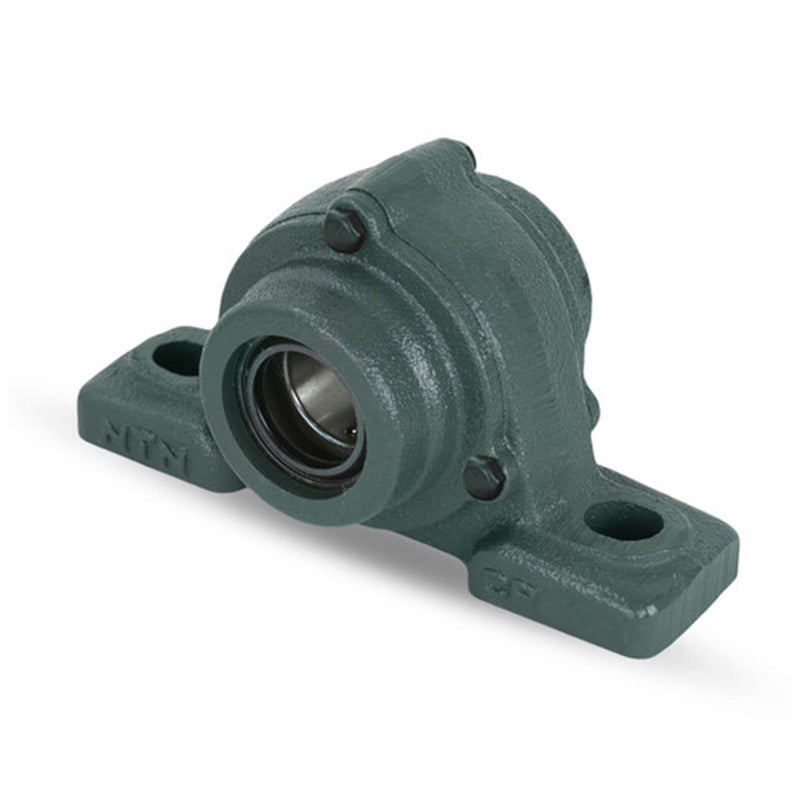

NTN M-C-UCP210-200D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN M-C-UCP210-200D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCP
- Bolt Hole Centres:
- 6-1/4 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2 inch |
| H | 2-1/4 inch |
| L | 8-1/8 inch |
| J | 6-1/4 inch |
| A | 2-3/8 inch |
| N | 25/32 inch |
| N<sub>1</sub> | 29/32 inch |
| H<sub>1</sub> | 13/16 inch |
| H<sub>2</sub> | 4-1/2 inch |
| L<sub>1</sub> | 2-9/16 inch |
| B | 2.0315 inch |
| S | 0.748 inch |
| H<sub>3</sub> | 4-11/16 inch |
| A<sub>5</sub> | 3-15/16 inch |
| Fixing bolt | 5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 7.9 lbs |
