SKU: LMEK-60-L-UU-EU

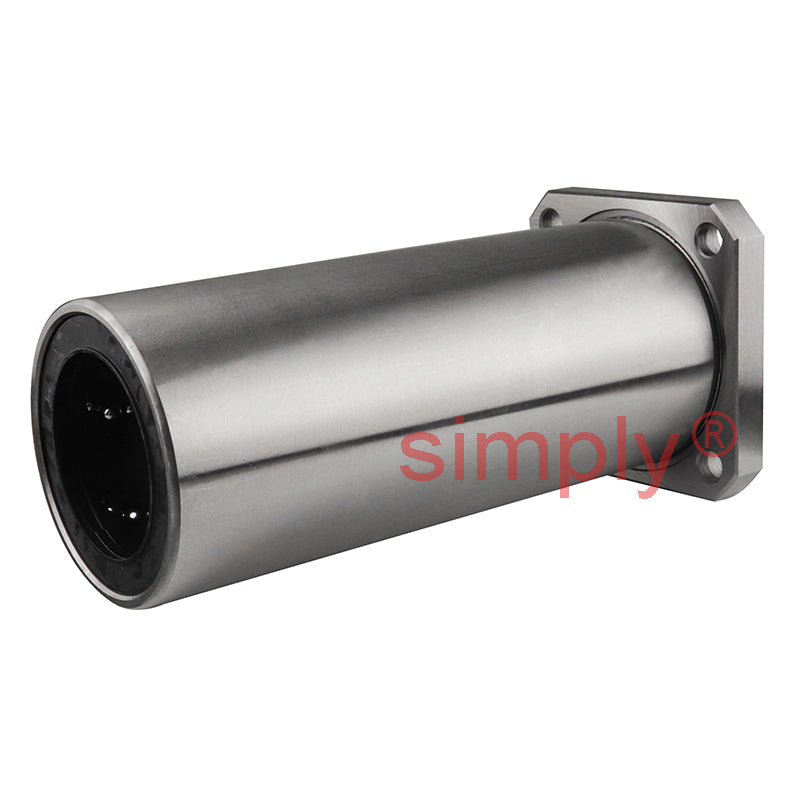

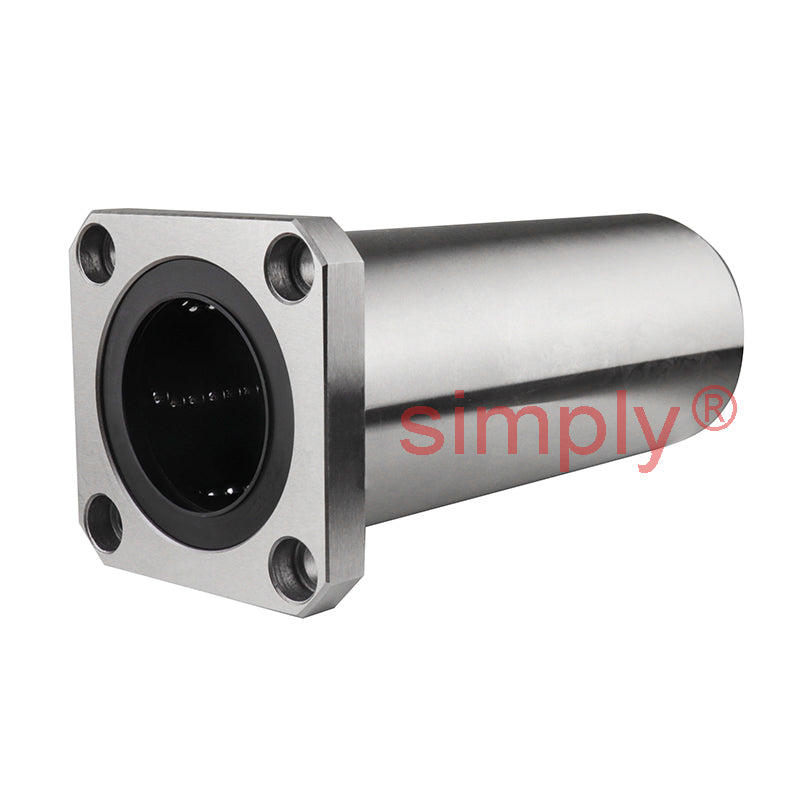

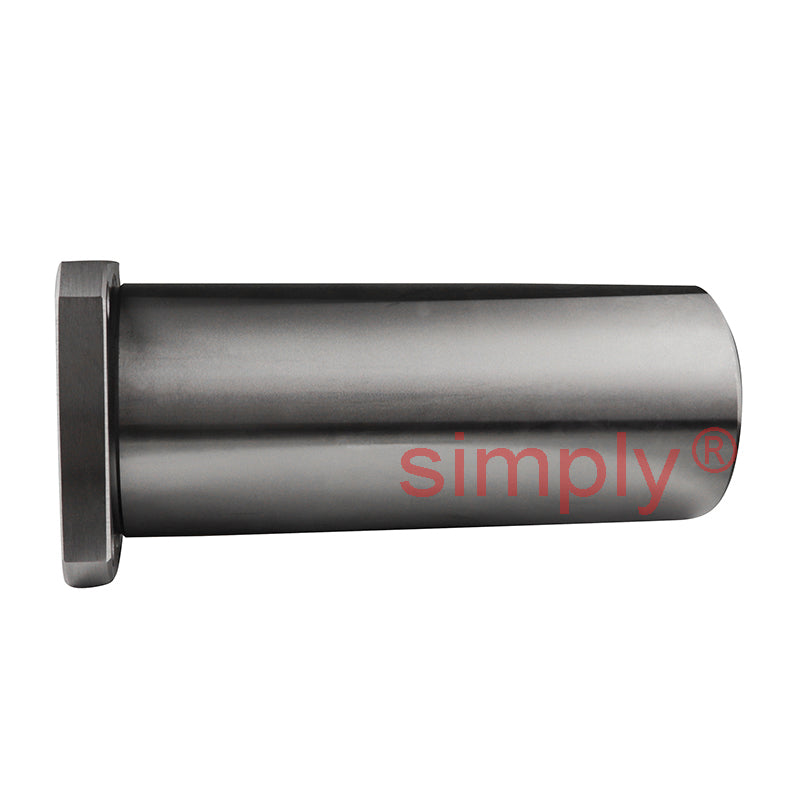

LMEKL60UU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x211mm

LMEKL60UU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x211mm
CHF 127.00 ex VAT
CHF 127.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 101.51
5+ CHF 95.81
9+ CHF 94.67
19+ CHF 93.53
49+ CHF 92.39
74+ CHF 91.25
99+ CHF 85.55
199+ CHF 84.41
249+ CHF 83.26
499+ CHF 82.12
999+ CHF 79.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEK_LNG_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
90mm
Length:
211mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 60mm
Bore Clearance +0.016/-0.004mm
D 90mm
D Clearance 0/-0.020mm
L 211mm
L Clearance 0/-0.4mm
D<sub>1</sub> 134mm
D<sub>1</sub> Clearance 0/-0.3mm
H 18mm
PCD 112mm
K 106mm
d<sub>1</sub> 11mm
d<sub>2</sub> 17.5mm
h 10.8mm
Squareness um 30
Basic Load Rating - Dynamic C 7650 N
Basic Load Rating - Static Co 20000 N
No of Ball Rows 6
