SKU: LMEK-25-L-UU-EU

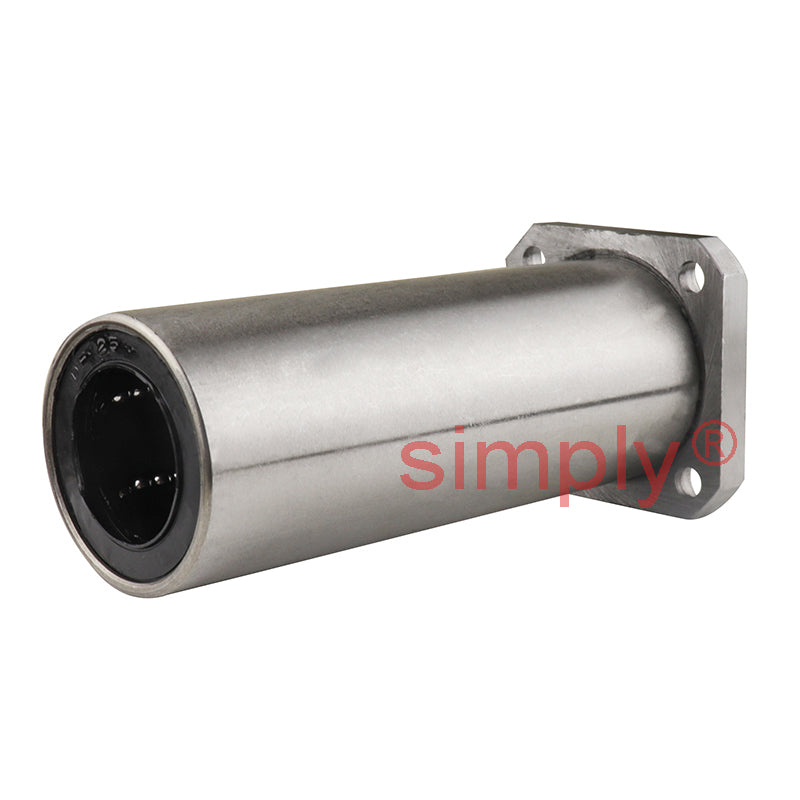

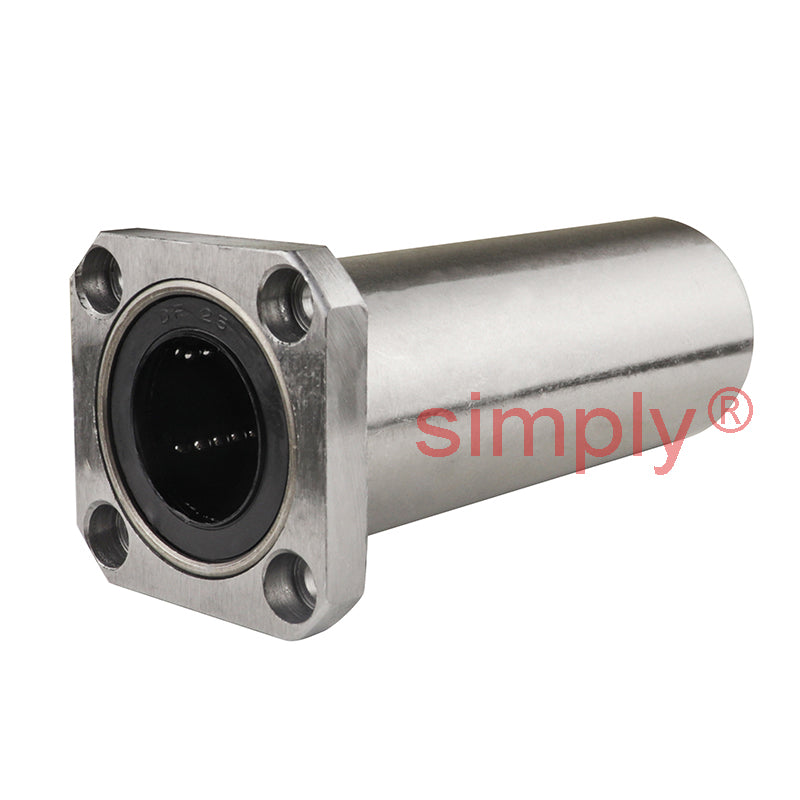

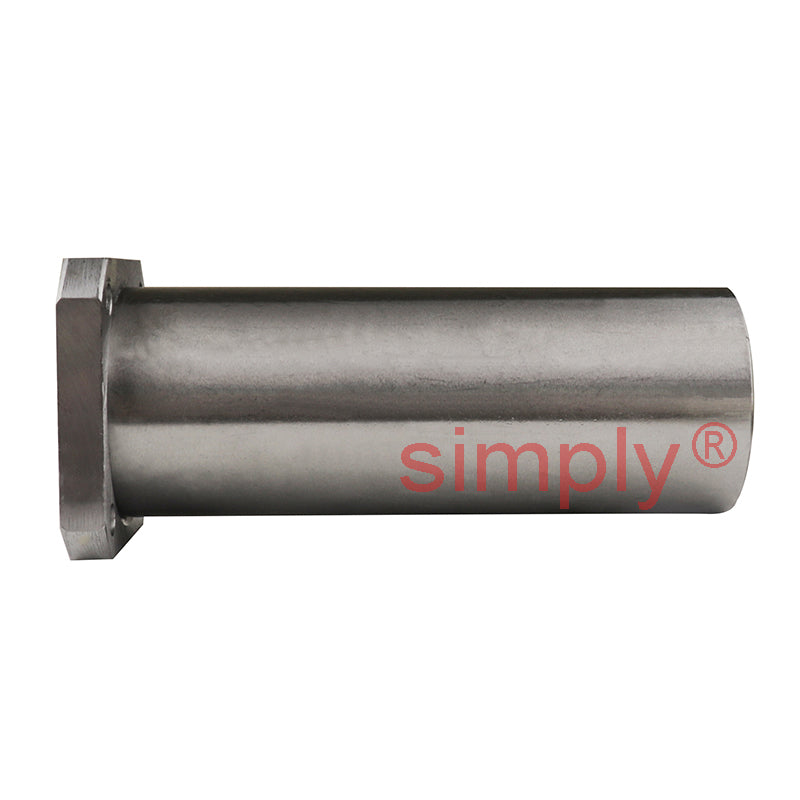

LMEK25LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x112mm

LMEK25LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x112mm
CHF 80.00 ex VAT
CHF 80.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 63.53
5+ CHF 59.96
9+ CHF 59.25
19+ CHF 58.53
49+ CHF 57.82
74+ CHF 57.11
99+ CHF 53.54
199+ CHF 52.82
249+ CHF 52.11
499+ CHF 51.40
999+ CHF 49.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMEK_LNG_HEAD
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
112mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 25mm
Bore Clearance +0.013/-0.002mm
D 40mm
D Clearance 0/-0.013mm
L 112mm
L Clearance 0/-0.4mm
D<sub>1</sub> 62mm
D<sub>1</sub> Clearance 0/-0.2mm
H 8mm
PCD 51mm
K 50mm
d<sub>1</sub> 5.5mm
d<sub>2</sub> 9.5mm
h 5.4mm
Squareness um 17
Basic Load Rating - Dynamic C 1560 N
Basic Load Rating - Static Co 3140 N
No of Ball Rows 6
