SKU: LM567949/910/HA1-SKF

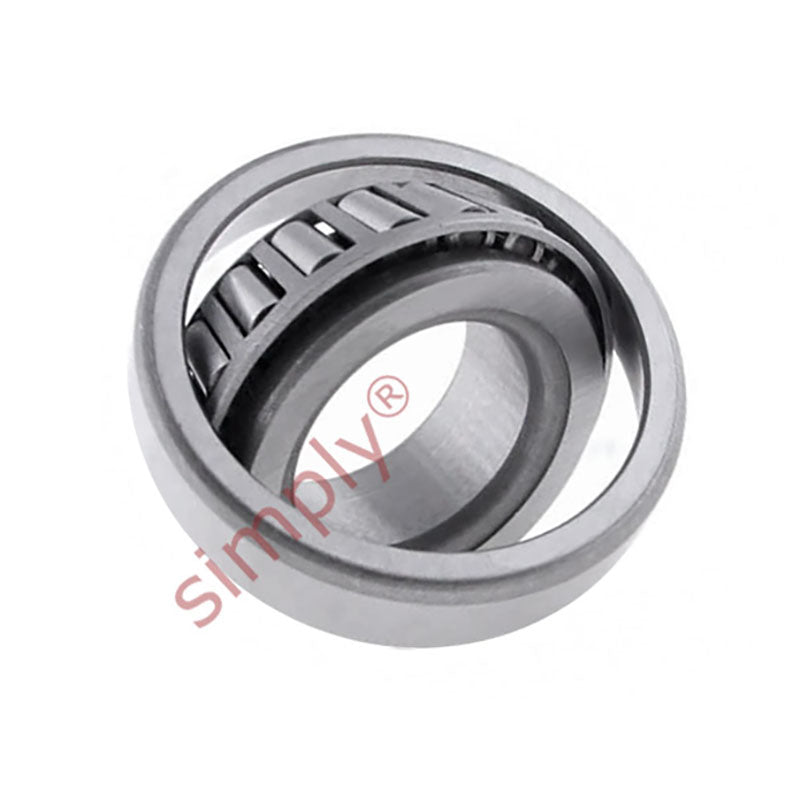

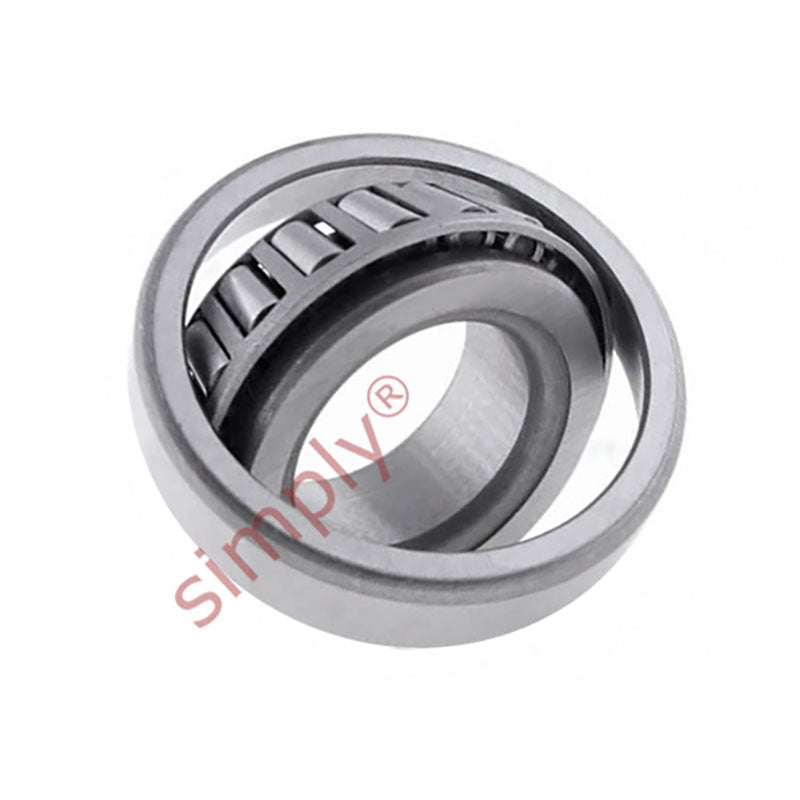

SKF LM567949/910/HA1 Imperial Taper Roller Bearing 16x21.625x3.375 inches

Name: SKF LM567949/910/HA1 Imperial Taper Roller Bearing 16x21.625x3.375 inches
Brand: SKF
SKU: LM567949/910/HA1-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 406.4mm = 16 inch
Outside Diameter:: 549.28mm = 21.625 (21-5/8) inch
Width:: 85.73mm = 3.375 (3-3/8) inch
Seals / Shields:: None

Technical

d	406.4mm
D	549.275mm
T	85.725mm
Dynamic load	1380 kN
Static load	3050 kN
Fatigue load limit Pu	236 kN
Reference speed	700 rpm
Limiting speed	1000 rpm
Weight	53.5 kg
d1	471mm
B	84.138mm
C	61.962mm
r1r2 min	6.4mm
r3r4 min	3.3mm
a	100mm
da max	434mm
db min	438mm
Da min	502mm
Da max	532mm
Db min	526mm
Ca min	13mm
Cb min	23.5mm
ra max	6mm
rb max	3mm
Calculation factor e	0.4
Calculation factor Y	1.5
Calculation factor Y0	0.8
