SKU: LM361649A/610-SKF

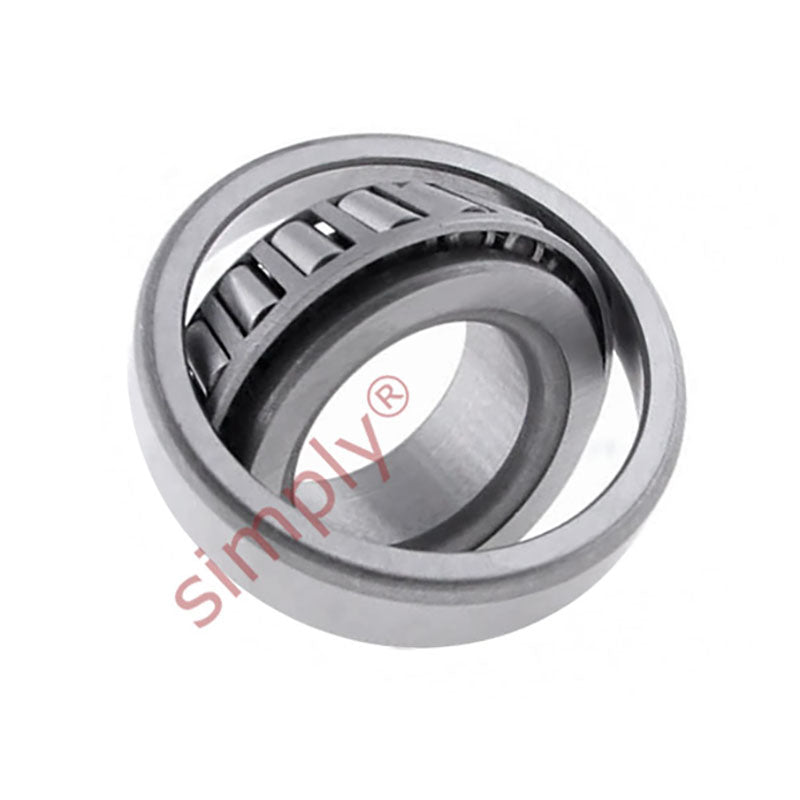

SKF LM361649A/610 Imperial Taper Roller Bearing 13.51x17.75x2.625 inches

Name: SKF LM361649A/610 Imperial Taper Roller Bearing 13.51x17.75x2.625 inches
Brand: SKF
SKU: LM361649A/610-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 343.15mm = 13.51 inch
Outside Diameter:: 450.85mm = 17.75 (17-3/4) inch
Width:: 66.68mm = 2.625 (2-5/8) inch
Seals / Shields:: None

Technical

d	343.154mm
D	450.85mm
T	66.675mm
Dynamic load	935 kN
Static load	2200 kN
Fatigue load limit Pu	180 kN
Reference speed	900 rpm
Limiting speed	1300 rpm
Weight	28 kg
d1	394mm
B	66.675mm
C	52.388mm
r1r2 min	8.5mm
r3r4 min	3.5mm
a	75mm
da max	365mm
db min	385mm
Da min	417mm
Da max	433mm
Db min	434mm
Ca min	12mm
Cb min	14mm
ra max	8mm
rb max	3mm
Calculation factor e	0.35
Calculation factor Y	1.7
Calculation factor Y0	0.9
