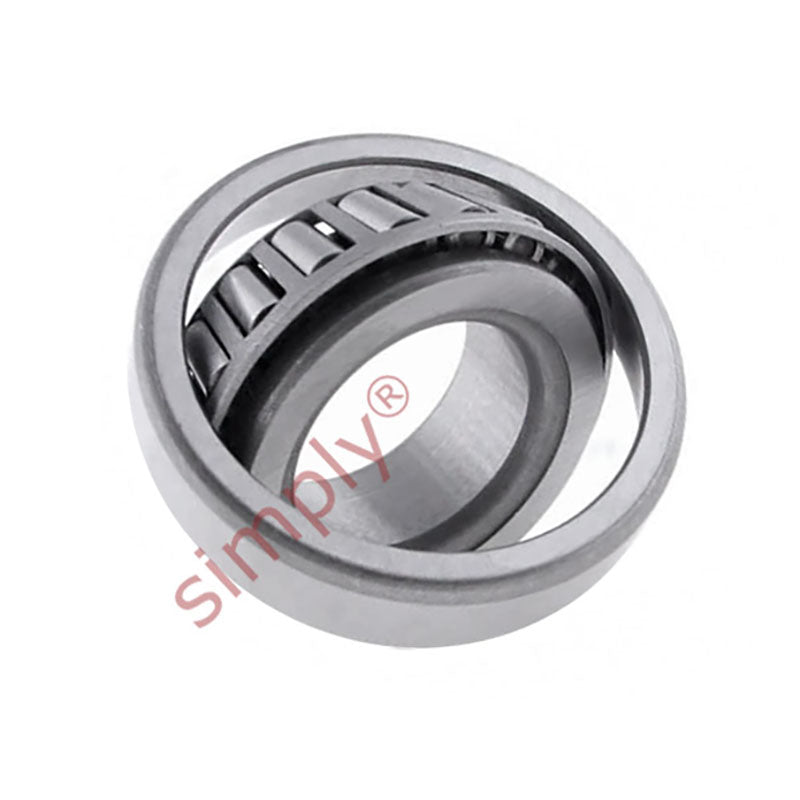

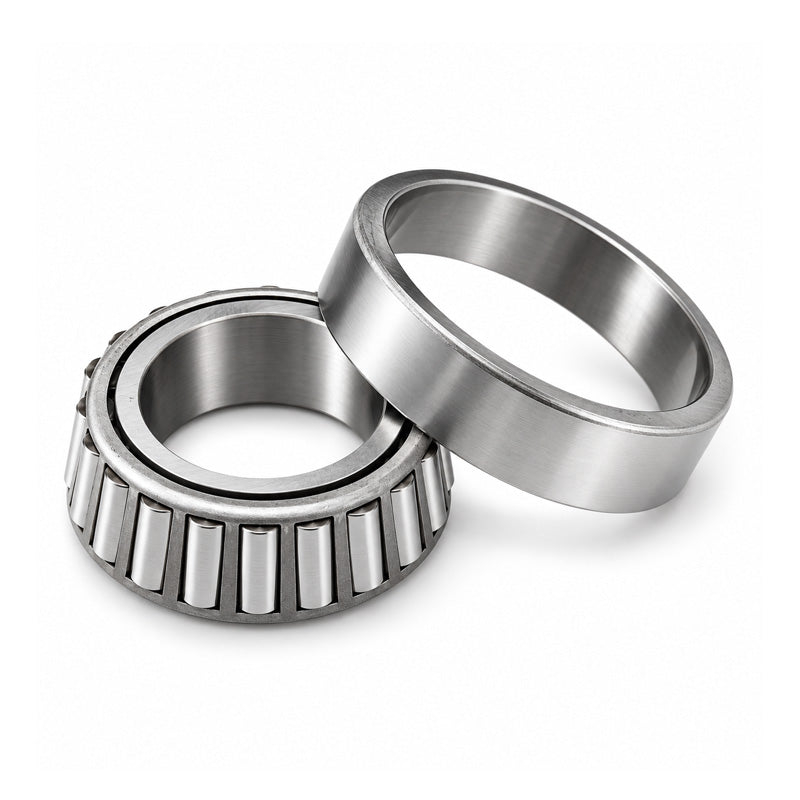

• SKF LM29749/711/Q Imperial Taper Roller Bearing 1.5x2.5625x0.78 inches
1 1

SKU: LM29749/711/Q-SKF

SKF LM29749/711/Q Imperial Taper Roller Bearing 1.5x2.5625x0.78 inches

SKF LM29749/711/Q Imperial Taper Roller Bearing 1.5x2.5625x0.78 inches
CHF 51.00 ex VAT
CHF 51.00 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Outside Diameter:
65.09mm = 2.563 (2-9/16) inch
Width:
19.81mm = 0.78 inch
Seals / Shields:
None
Technical
d 38.1mm
D 65.088mm
T 19.812mm
Dynamic load 42.9 kN
Static load 57 kN
Fatigue load limit Pu 6.1 kN
Reference speed 7500 rpm
Limiting speed 11000 rpm
Weight 0.25 kg
d1 51.8mm
B 18.288mm
C 15.748mm
r1r2 min 2.3mm
r3r4 min 1.3mm
a 15mm
da max 44mm
db min 47mm
Da min 57mm
Da max 58.5mm
Db min 61mm
Ca min 2mm
Cb min 4mm
ra max 2mm
rb max 1.3mm
Calculation factor e 0.33
Calculation factor Y 1.8
Calculation factor Y0 1
