SKU: LM.6.UU.EU

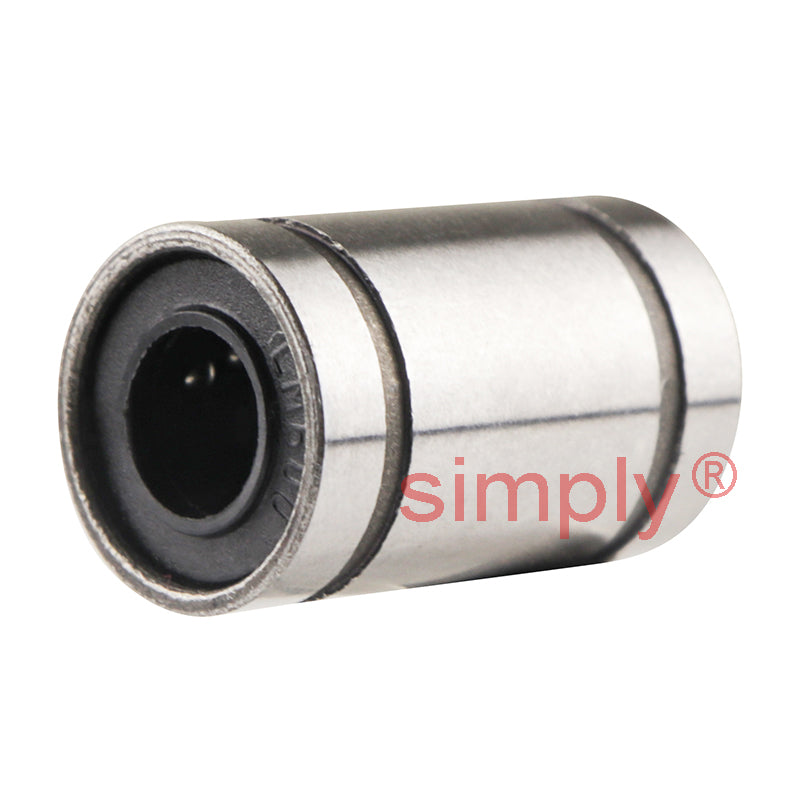

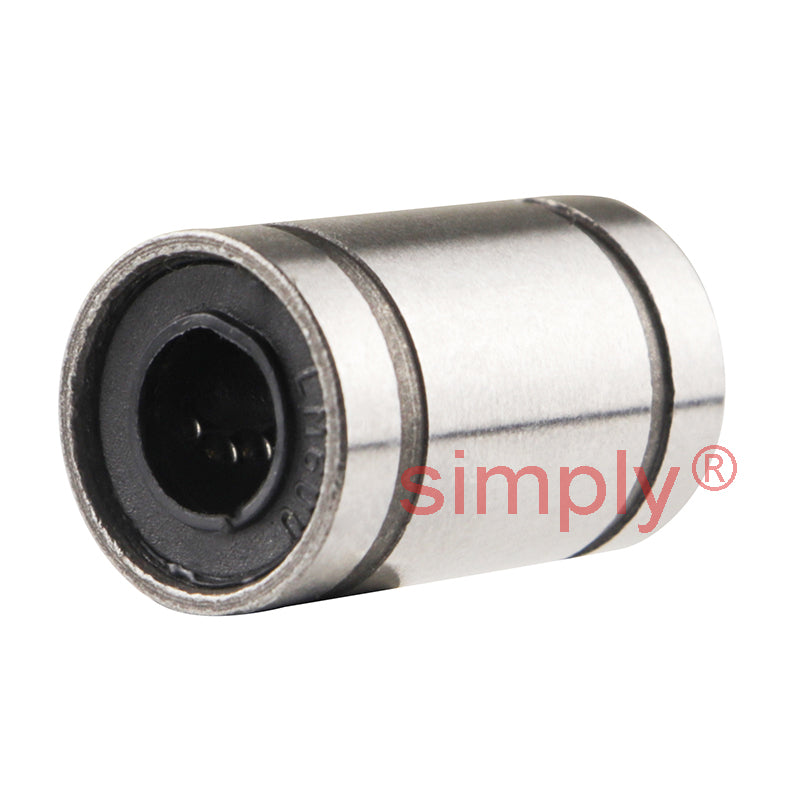

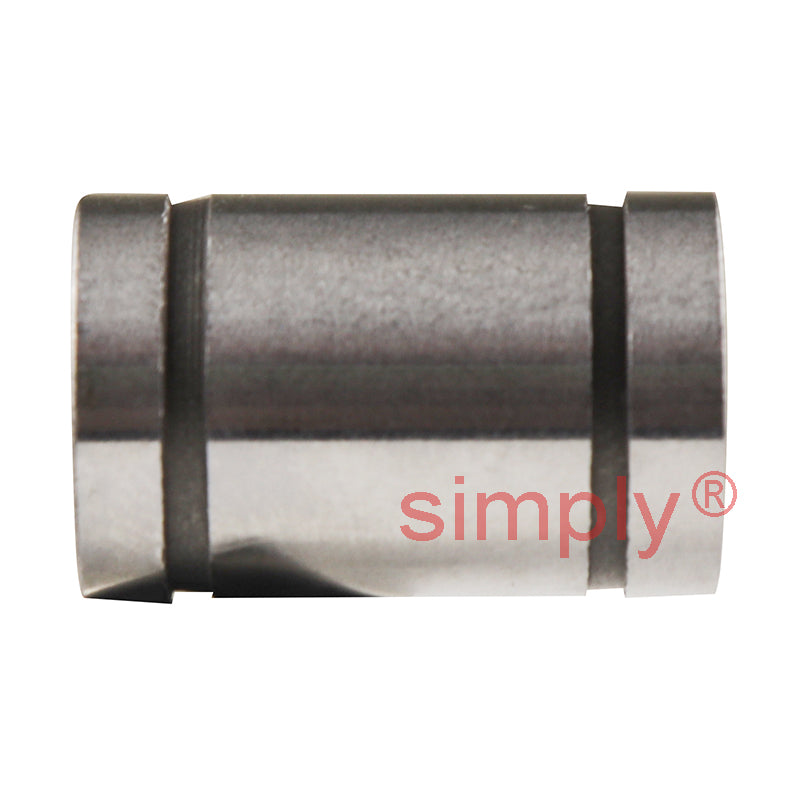

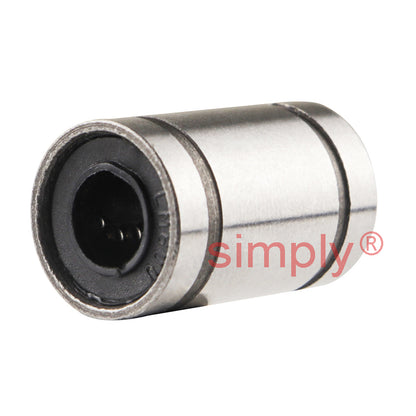

LM6UU Closed Linear Ball Bushing with Rubber Seals 6x12x19mm
Equivalent to: SM6GUU LBD6UU LB6NYDD L6UU TB6UU KLM6LL SDM6YUU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
LM Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 12mm
- Length:
- 19mm
Technical
| Inside Diameter dr | 6mm Tol + 0 to - 6µm |
|---|---|
| Outside Diameter D | 12mm Tol + 0 to - 10µm |
| Length L | 19mm Tol + 0 to - 200µm |
| W | 1.1mm |
| D1 | 11.5mm |
| Eccentricity | 8µm |
| Dynamic load C | 11 kgf |
| Static load C<sub>o</sub> | 19 kgf |
| Weight | 8 g |
| B | 13.5mm Tol + 0 to - 200µm |
| Number of ball rows | 3 |
| Tolerances dr & D | Apply to closed type only |
