• LM20UUAJ Adjustable Linear Ball Bushing with Rubber Seals 20x32x42mm
  • LM20UUAJ Adjustable Linear Ball Bushing with Rubber Seals 20x32x42mm
  • LM20UUAJ Adjustable Linear Ball Bushing with Rubber Seals 20x32x42mm
1 3

SKU: LM.20.UU.AJ.EU

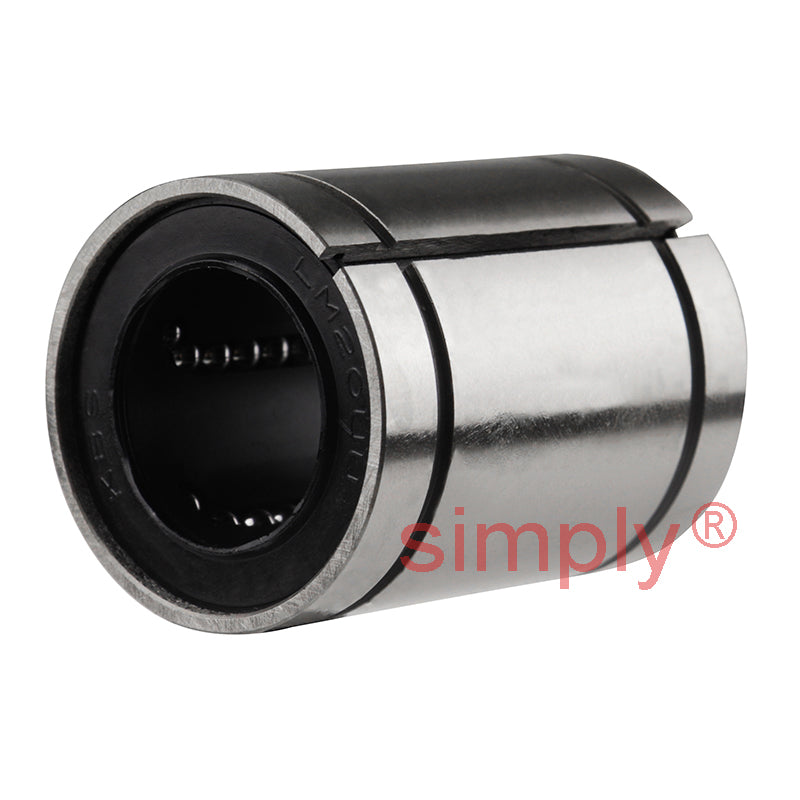

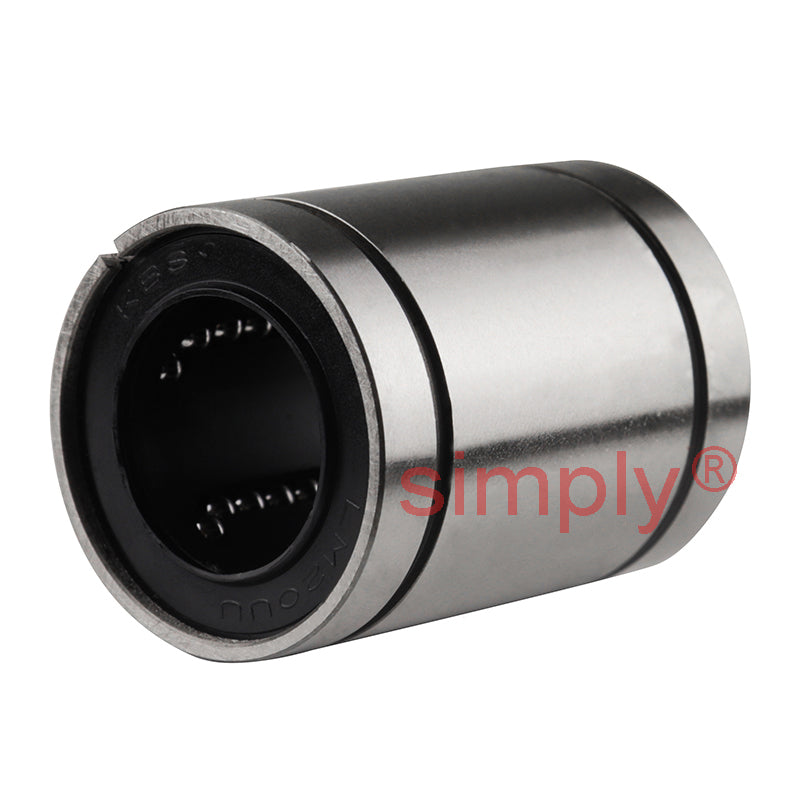

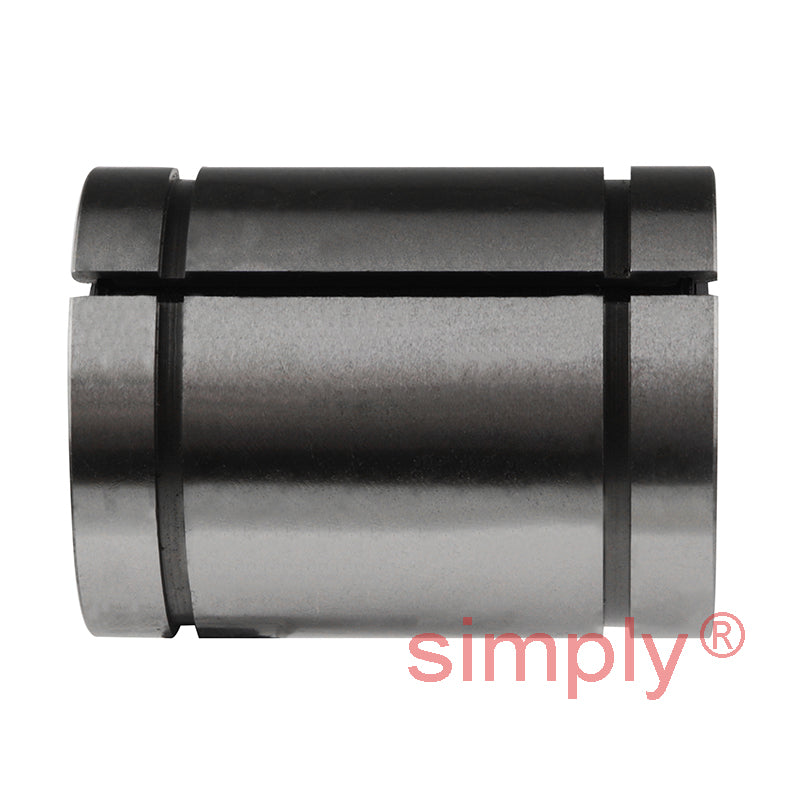

LM20UUAJ Adjustable Linear Ball Bushing with Rubber Seals 20x32x42mm

LM20UUAJ Adjustable Linear Ball Bushing with Rubber Seals 20x32x42mm
CHF 20.00 ex VAT
CHF 20.00 ex VAT
Sale Sold out

Equivalent to: SM20GUUAJ LBD20UUAJ LB20NTYDD N20VUUADJ L20ADJUU TB20ADJUU

In stock

Price Break
3+ CHF 15.51
5+ CHF 14.64
10+ CHF 14.46
15+ CHF 14.29
20+ CHF 14.11
30+ CHF 13.94
40+ CHF 13.07
50+ CHF 12.89
60+ CHF 12.72
75+ CHF 12.55
100+ CHF 12.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LMAJ_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
42mm
Technical
Inside Diameter dr 20mm Tol + 0 to - 7µm
Outside Diameter D 32mm Tol + 0 to - 14µm
Length L 42mm Tol + 0 to - 300µm
W 1.6mm
D1 30.5mm
h 1.5mm
Eccentricity 10µm
Dynamic load C 60 kgf
Static load C<sub>o</sub> 105 kgf
Weight 87 g
B 30.5mm Tol + 0 to - 300&micro;m
Number of ball rows 6
