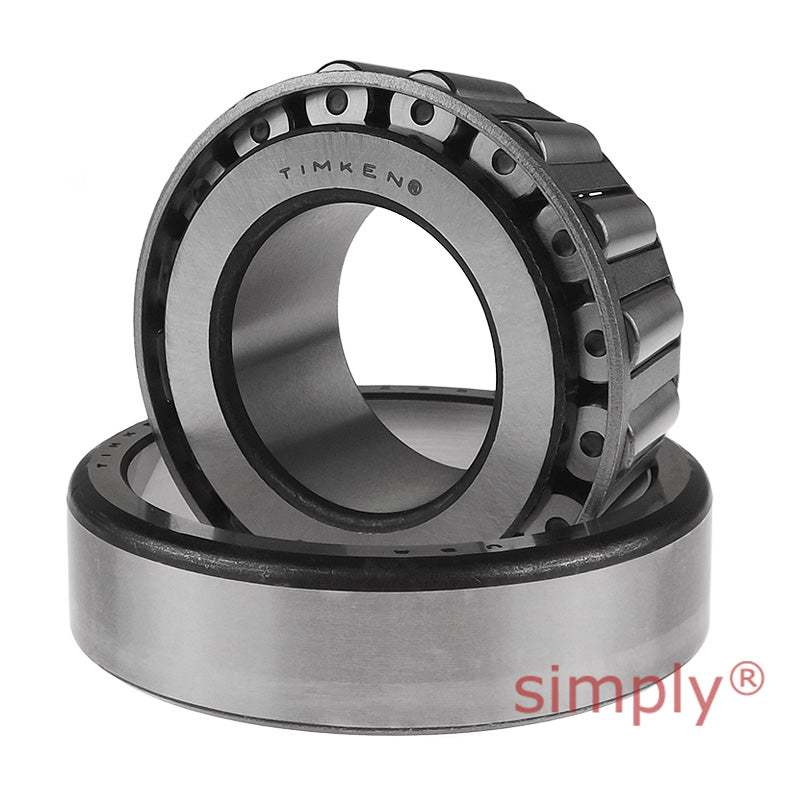

• Timken L521949/L521914 TS Single-Row Taper Roller Bearing 4.25x6x0.8438 inch
1 1

SKU: L521949/L521914-TIM

Timken L521949/L521914 TS Single-Row Taper Roller Bearing 4.25x6x0.8438 inch

Timken L521949/L521914 TS Single-Row Taper Roller Bearing 4.25x6x0.8438 inch
CHF 433.00 ex VAT
CHF 433.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 346.39
20+ CHF 326.93
30+ CHF 323.04
40+ CHF 319.14
50+ CHF 315.25
75+ CHF 311.36
100+ CHF 291.90
200+ CHF 288.01
250+ CHF 284.12
500+ CHF 280.22
1000+ CHF 272.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
107.95mm = 4.25 (4-1/4) inch
Outside Diameter:
152.4mm = 6 inch
Width:
21.44mm = 0.844 (27/32) inch
Technical
d 107.95mm = 4.25 inch
D 152.4mm = 6 inch
T 21.433mm = 0.8438 inch
Dynamic (1) C1 88900N
Factors (5) e 0.39
Factors (5) Y 1.53
Dynamic (2) C90 23100N
Dynamic (2) Ca90 15500N
Factors (5) K 1.49
Static C0 175000N
Bearing B 21.433mm = 0.8438 inch
Bearing C 16.67mm = 0.6563 inch
Bearing a(3) 4.8mm = 0.19 inch
Shaft max shaft fillet radius R(4) 1.5mm = 0.06 inch
Shaft backing shoulder diameter da 114mm = 4.49 inch
Shaft backing shoulder diameter db 116mm = 4.57 inch
Housing backing shoulder diameter r(4) 1.5mm = 0.06 inch
Housing backing shoulder diameter Da 144mm = 5.67 inch
Housing backing shoulder diameter Db 139mm = 5.47 inch
Cage Aa 0.8mm = 0.03 inch
Cage Ab 1.5mm = 0.06 inch
G1 152
G2 108
Cg 0.1346
