SKU: L507949/L507910-TIM

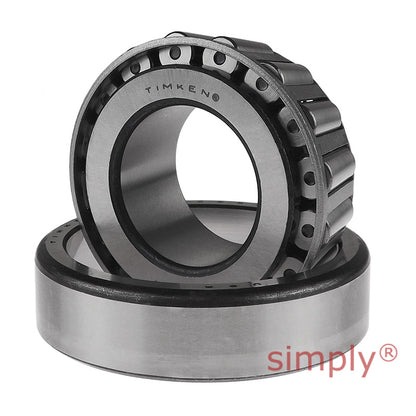

Timken L507949/L507910 TS Single-Row Taper Roller Bearing 2.25x3.4375x0.7188 inch
Timken L507949/L507910 TS Single-Row Taper Roller Bearing 2.25x3.4375x0.7188 inch
Regular price
CHF 190.00
ex VAT
Regular price
Sale price
CHF 190.00
ex VAT
In stock
Price Break
10+
CHF 151.78
20+
CHF 143.25
30+
CHF 141.55
40+
CHF 139.84
50+
CHF 138.14
75+
CHF 136.43
100+
CHF 127.91
200+
CHF 126.20
250+
CHF 124.50
500+
CHF 122.79
1000+
CHF 119.38
Quantity
Couldn't load pickup availability
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
- Width:
- 18.26mm = 0.719 (23/32) inch
Technical
Technical
| d | 57.15mm = 2.25 inch |
|---|---|
| D | 87.312mm = 3.4375 inch |
| T | 18.258mm = 0.7188 inch |
| Dynamic (1) C1 | 58100N |
| Factors (5) e | 0.39 |
| Factors (5) Y | 1.54 |
| Dynamic (2) C90 | 15100N |
| Dynamic (2) Ca90 | 10000N |
| Factors (5) K | 1.5 |
| Static C0 | 95600N |
| Bearing B | 18.258mm = 0.7188 inch |
| Bearing C | 14.288mm = 0.5625 inch |
| Bearing a(3) | -0.8mm = -0.03 inch |
| Shaft max shaft fillet radius R(4) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 62mm = 2.44 inch |
| Shaft backing shoulder diameter db | 65mm = 2.56 inch |
| Housing backing shoulder diameter r(4) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 83mm = 3.27 inch |
| Housing backing shoulder diameter Db | 79mm = 3.11 inch |
| Cage Aa | 0.3mm = 0.01 inch |
| Cage Ab | 2mm = 0.08 inch |
| G1 | 46.1 |
| G2 | 36.9 |
| Cg | 0.0914 |
