• Budget KR72PPA Contact Sealed Crowned Cam Follower 72x29x24 M24x1.5 Thread
1 1

SKU: KR72PPA-EU

Budget KR72PPA Contact Sealed Crowned Cam Follower 72x29x24 M24x1.5 Thread

Budget KR72PPA Contact Sealed Crowned Cam Follower 72x29x24 M24x1.5 Thread
CHF 79.00 ex VAT
CHF 79.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 62.81
19+ CHF 59.28
29+ CHF 58.57
39+ CHF 57.87
49+ CHF 57.16
74+ CHF 56.46
99+ CHF 52.93
199+ CHF 52.22
249+ CHF 51.52
499+ CHF 50.81
999+ CHF 49.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
72mm
Width:
29mm
Pitch:
M24x1.5

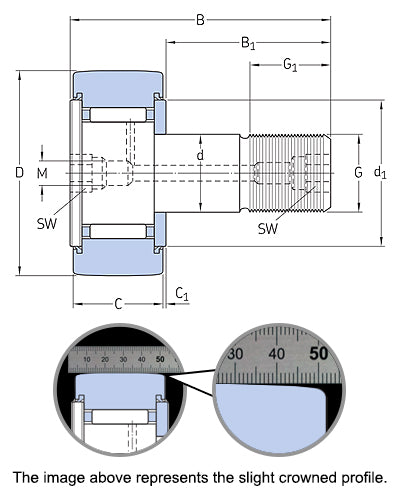

Technical
D 72mm
C 29mm
d (Stud Diameter) 24mm
B 80mm
B1 49.5mm
B2 11mm
C1 0.8mm
d1 44mm
G M24x1.5
G1 25mm
M1 4mm
r min 1.1mm
SW 14mm
Dynamic load 26000 N
Static load 48000 N
Fatigue load limit Pu 6000 N
Radial dynamic load 100000 N
Radial static load 143000 N
Speed rating 1900 rpm
Weight 1050 g
