SKU: KMTA9-SKF

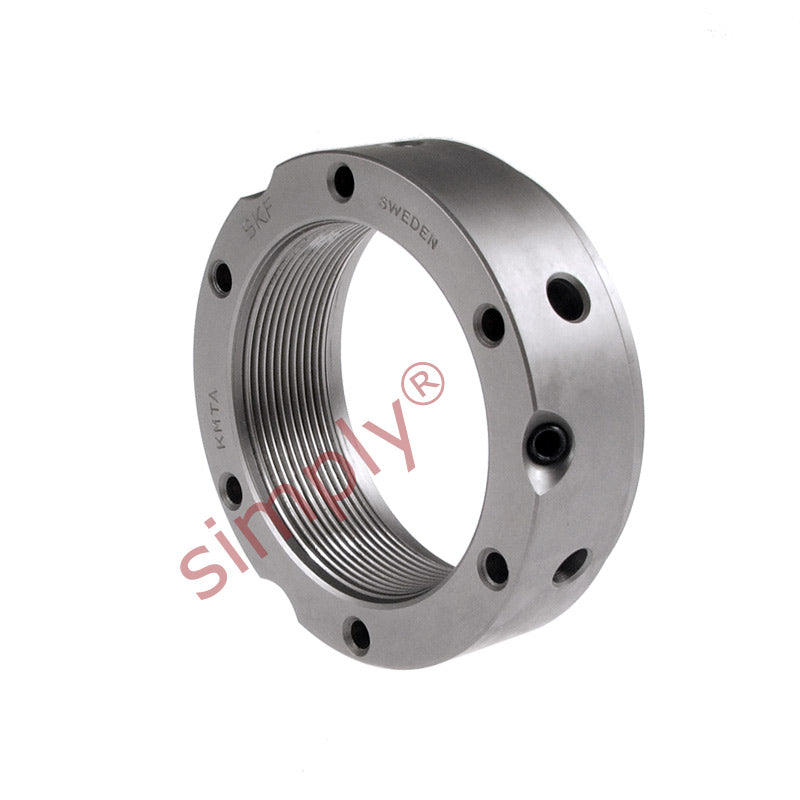

SKF KMTA9 Precision Locking Nut with Locking Pins M45x1.5mm
SKF KMTA9 Precision Locking Nut with Locking Pins M45x1.5mm
Out of stock
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M45x1.5
Technical
Technical
| G | M45x1.5 |
|---|---|
| d2 | 68mm |
| d3 | 58mm |
| d4 | 48mm |
| B | 22mm |
| J1 | 58mm |
| J2 | 12mm |
| N1 | 4.3mm |
| N2 | 6mm |
| Axial load capacity | 240 kN |
| Loosening torque | 95 Nm |
| Weight | 0.33 kg |
| Spanner | B68-75 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA9 |
