SKU: KMTA40-SKF

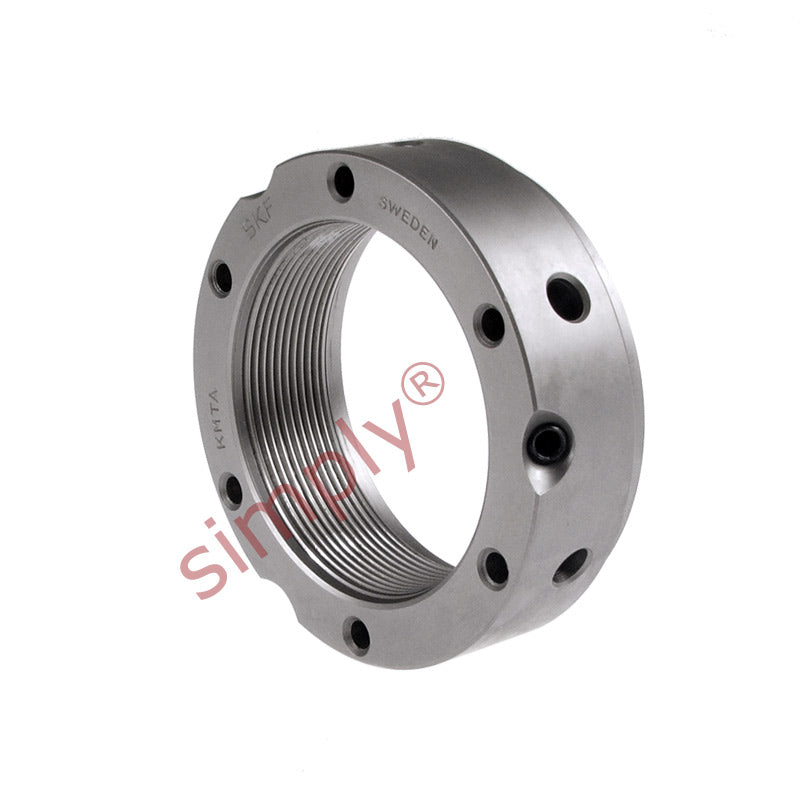

SKF KMTA40 Precision Locking Nut with Locking Pins M200x3mm
SKF KMTA40 Precision Locking Nut with Locking Pins M200x3mm
Out of stock
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M200x3
Technical
Technical
| G | M200x3 |
|---|---|
| d2 | 245mm |
| d3 | 237mm |
| d4 | 202mm |
| B | 32mm |
| J1 | 229mm |
| J2 | 17mm |
| N1 | 8.4mm |
| N2 | 10mm |
| Axial load capacity | 1340 kN |
| Loosening torque | 2200 Nm |
| Weight | 3.85 kg |
| Spanner | B230-245 |
| Grub Screw | M10 |
| Screw torque | 35 Nm |
| Name | KMTA40 |
