SKU: KMTA24-SKF

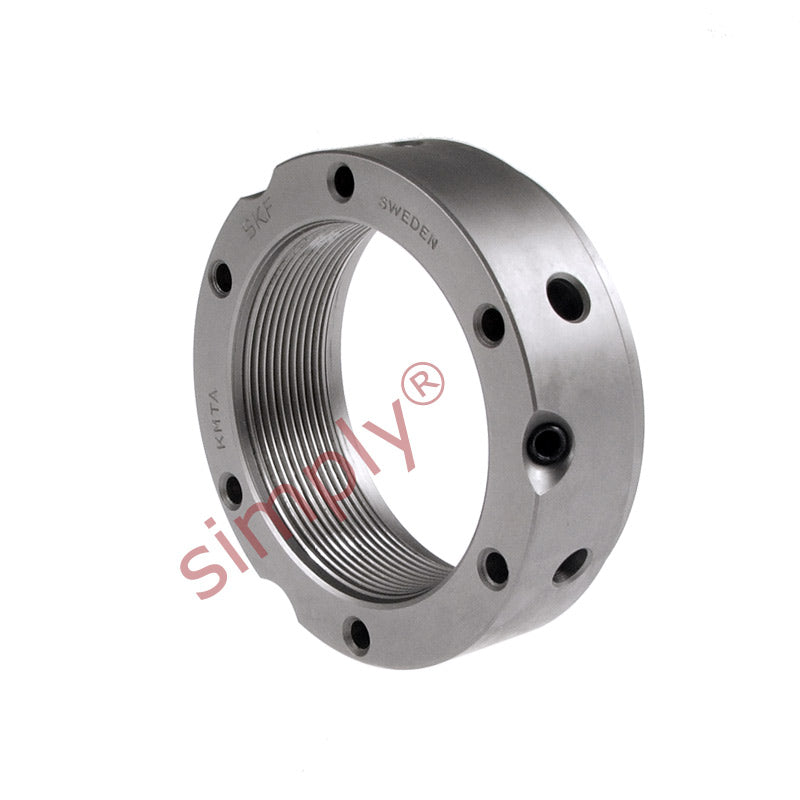

SKF KMTA24 Precision Locking Nut with Locking Pins M120x2mm

Name: SKF KMTA24 Precision Locking Nut with Locking Pins M120x2mm
Brand: SKF
SKU: KMTA24-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: SKF - High Quality
Thread Size:: M120x2

Technical

G	M120x2
d2	155mm
d3	142mm
d4	122mm
B	32mm
J1	140mm
J2	17mm
N1	6.4mm
N2	8mm
Axial load capacity	860 kN
Loosening torque	1080 Nm
Weight	1.85 kg
Spanner	B155-165
Grub Screw	M10
Screw torque	35 Nm
Name	KMTA24
