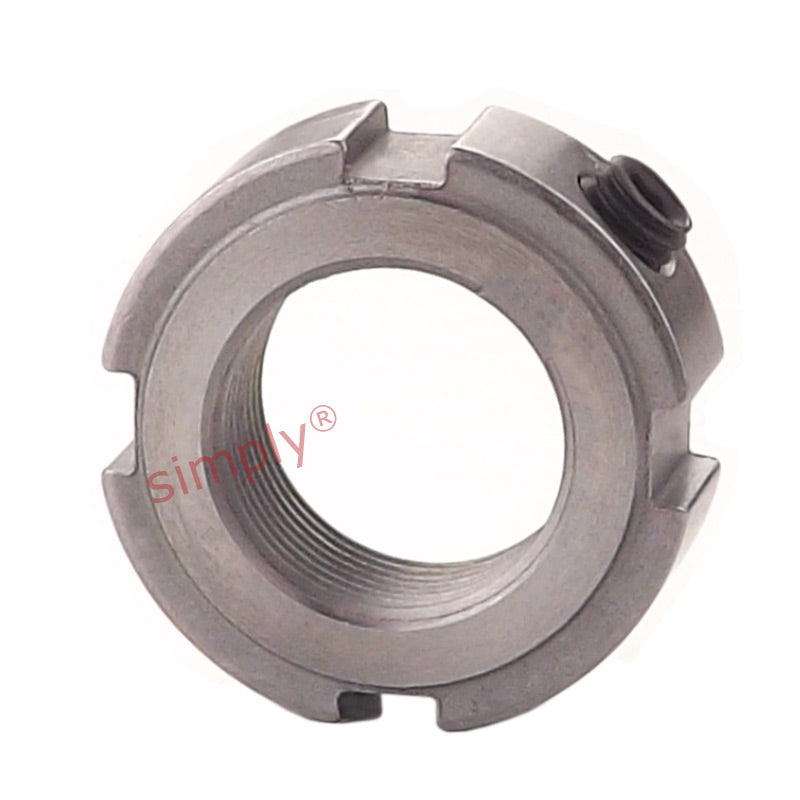

SKF KMK19 Lock Nut with Integral Locking Device M95x2mm
SKF KMK19 Lock Nut with Integral Locking Device M95x2mm
Out of stock
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M95x2
Technical
Technical
| d1 | 117mm |
|---|---|
| d3 | 125mm |
| B | 20mm |
| b | 10mm |
| h | 4mm |
| Axial load capacity | 236 kN |
| Loosening torque | 448 Nm |
| Weight | 0.76 kg |
| G | M95x2 |
| Designation | KMK19 |
| Locking device | HN19 |
| Grub screw | M10 |
| Grub screw torque | 35 Nm |
