SKU: KMK15-SKF

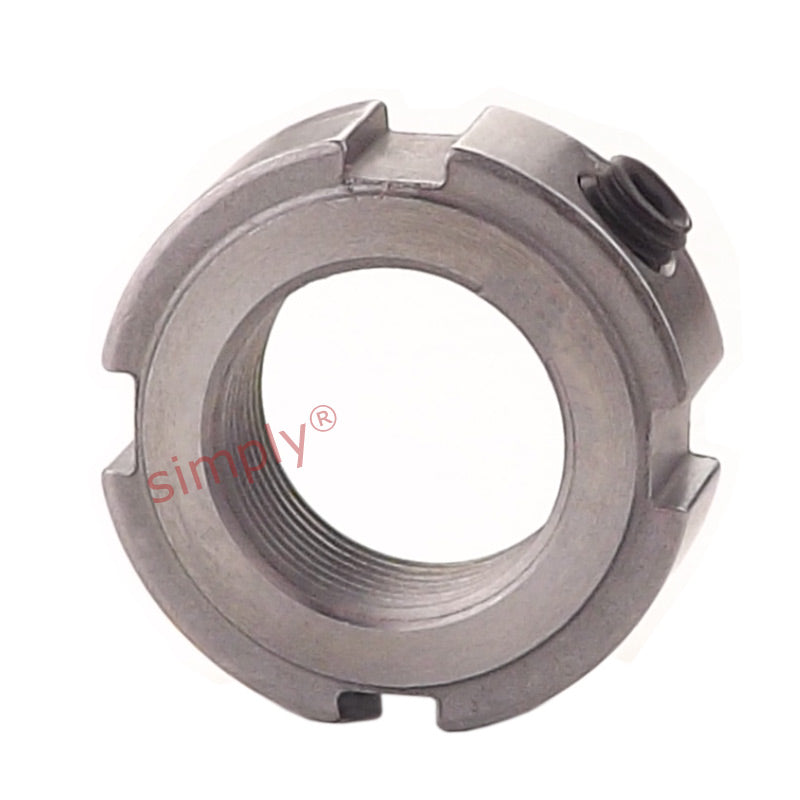

SKF KMK15 Lock Nut with Integral Locking Device M75x2mm
SKF KMK15 Lock Nut with Integral Locking Device M75x2mm
Out of stock
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M75x2
Technical
Technical
| d1 | 91mm |
|---|---|
| d3 | 98mm |
| B | 14mm |
| b | 8mm |
| h | 3.5mm |
| Axial load capacity | 134 kN |
| Loosening torque | 235 Nm |
| Weight | 0.33 kg |
| G | M75x2 |
| Designation | KMK15 |
| Locking device | HN15 |
| Grub screw | M8 |
| Grub screw torque | 18 Nm |
