SKU: KGBA50100PPAS-INA

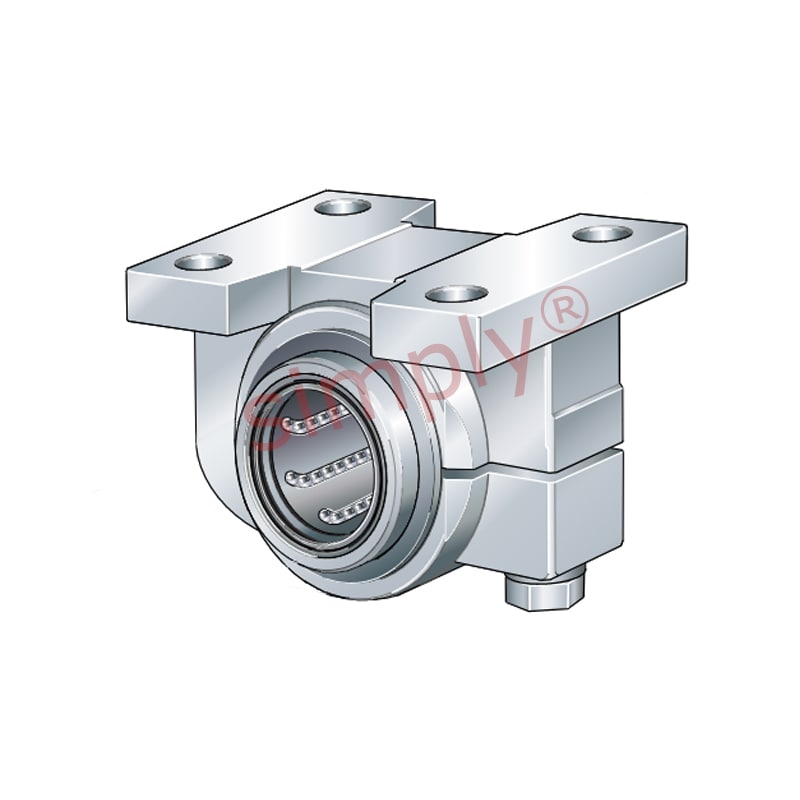

INA KGBA50100PPAS Linear Bearing
INA KGBA50100PPAS Linear Bearing
Regular price
CHF 216.00
ex VAT
Regular price
Sale price
CHF 216.00
ex VAT
Equivalent to: KGBA50PPAS
In stock
Price Break
10+
CHF 172.25
19+
CHF 162.57
29+
CHF 160.64
39+
CHF 158.70
49+
CHF 156.77
74+
CHF 154.83
99+
CHF 145.16
199+
CHF 143.22
249+
CHF 141.28
499+
CHF 139.35
999+
CHF 135.48
Quantity
Couldn't load pickup availability
Description
Description
N_E_U_T
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
Technical
Technical

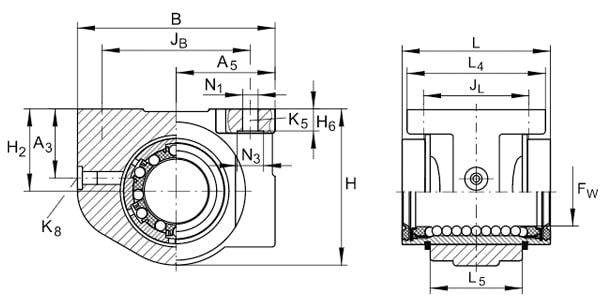

| Fw | 50mm (Tolerance: +0.013/-0.002) |
|---|---|
| H | 98mm |
| B | 130mm |
| L | 100mm (Tolerance: h12) |
| Number of rows of balls | 6 |
| A3 | 34mm |
| A5 | 65mm (Tolerance: +0.015/-0.015) |
| H2 | 50mm (Tolerance: +0.015/-0.015) |
| H6 | 12.5mm (Tolerance: 0/-0.5) |
| JB | 108mm (Tolerance: +0.2/-0.2) |
| JL | 50mm (Tolerance: +0.2/-0.2) |
| K5 | M8 (for fixing screws to ISO 4762-8.8<br>If there is a possibility of setting, the screws should be secured against rotation |
| K8 Lubrication nipple | NIPA2 |
| L4 | 70mm |
| L5 | 72mm |
| N1 | 9.2mm |
| N3 | 15mm |
| Mass | 1.88 kg |
| Dynamic load C | 8700 N<br>The basic load ratings are valid only for hardened (650 HV + 165 HV) and ground shaft raceways |
| Static load C0 | 6300 N<br>The basic load ratings are valid only for hardened (650 HV + 165 HV) and ground shaft raceways |
