• igubal KBRM05 Right Hand Female Plastic Rod End 5mm Bore M5 Thread
1 1

SKU: KBRM-05

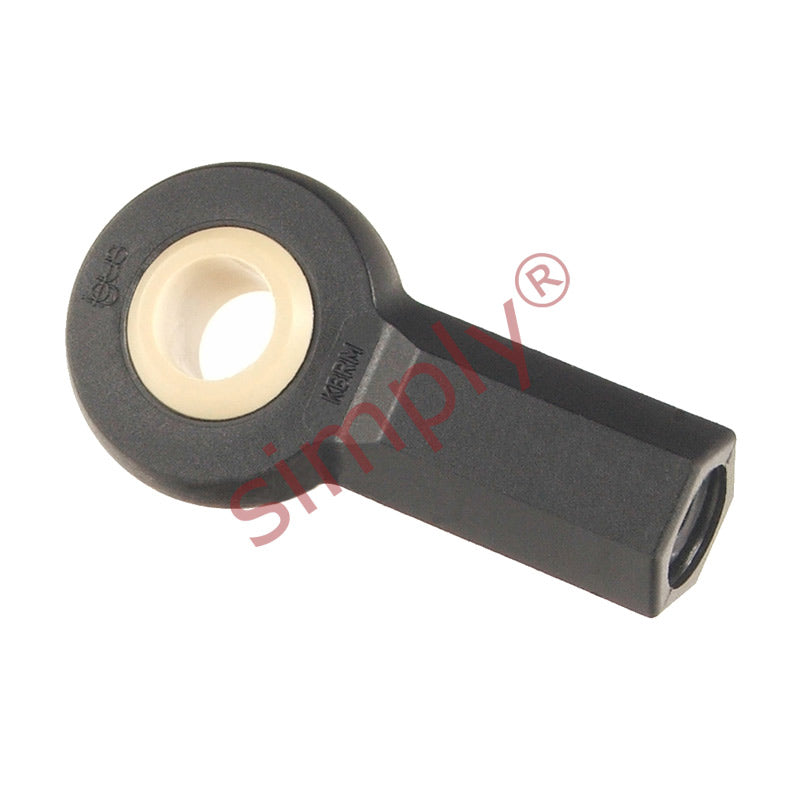

igubal KBRM05 Right Hand Female Plastic Rod End 5mm Bore M5 Thread

igubal KBRM05 Right Hand Female Plastic Rod End 5mm Bore M5 Thread
CHF 13.00 ex VAT
CHF 13.00 ex VAT
Sale Sold out

In stock

Price Break
4+ CHF 10.38
9+ CHF 9.79
19+ CHF 9.68
29+ CHF 9.56
39+ CHF 9.45
49+ CHF 9.33
59+ CHF 8.75
69+ CHF 8.63
79+ CHF 8.51
89+ CHF 8.40
99+ CHF 8.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KBRM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M5
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
5mm
Technical
d1 5mm
d2 18mm
d3 M5
d4 9mm
d5 12mm
C1 6mm
B 8mm
h1 27mm
l1 10mm
l2 36mm
W SW09
Max pivot angle 30°
Max static tensile strength (short term) 1000 N
Max static tensile strength (long term) 500 N
Max radial load (short term) 250 N
Max radial load (long term) 125 N
Min thread depth 7mm
Max torque strength inside thread 1 Nm
Max torque through ball (standard) 5 Nm
Max torque through ball (MH) 12 Nm
Weight 3.4 g
