SKU: KARM-10.F

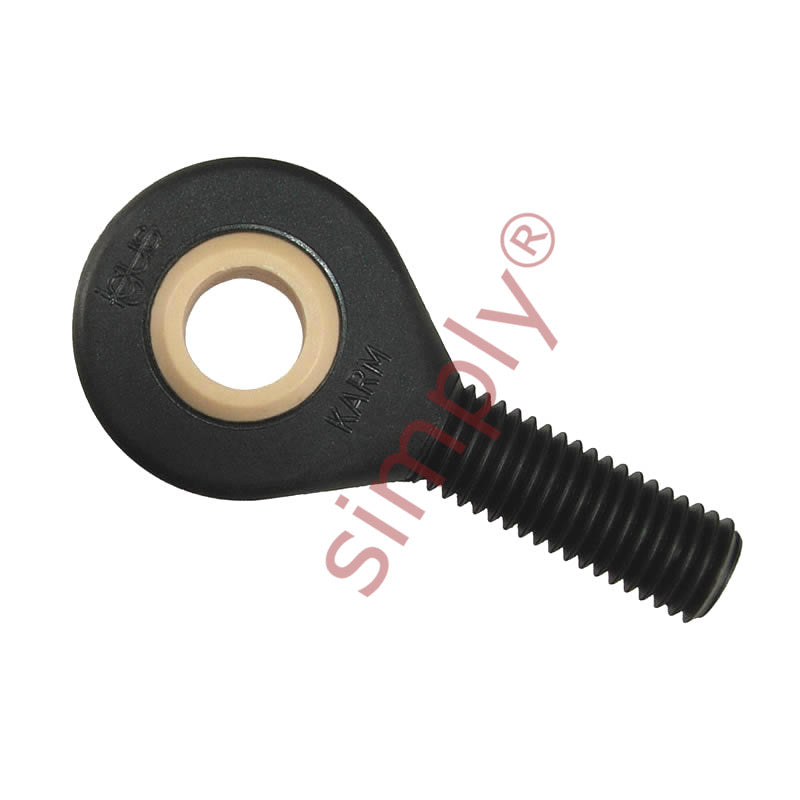

igubal KARM10F Right Hand Male Plastic Rod End 10mm Bore M10x1.25 Thread
igubal KARM10F Right Hand Male Plastic Rod End 10mm Bore M10x1.25 Thread
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
In stock
Price Break
4+
CHF 11.86
9+
CHF 11.20
19+
CHF 11.06
29+
CHF 10.93
39+
CHF 10.80
49+
CHF 10.66
59+
CHF 10.00
69+
CHF 9.86
79+
CHF 9.73
89+
CHF 9.60
99+
CHF 9.33
Quantity
Couldn't load pickup availability
Share this product
Description
Description
KARM_DESC
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M10x1.25
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 10mm
Technical
Technical
| d1 | 10mm |
|---|---|
| d2 | 30mm |
| d3 | M10x1.25 |
| C1 | 10.5mm |
| B | 14mm |
| h | 48mm |
| l1 | 28mm |
| l2 | 63mm |
| Max pivot angle | 25° |
| Max static tensile strength (short term) | 2500 N |
| Max static tensile strength (long term) | 1250 N |
| Max radial load (short term) | 300 N |
| Max radial load (long term) | 150 N |
| Min thread depth | 20mm |
| Max torque strength outside thread | 3 Nm |
| Max torque through ball (standard) | 20 Nm |
| Max torque through ball (MH) | 50 Nm |
| Weight | 12.5 g |
