• igubal KARM10CLR Right Hand Male Plastic Rod End 10mm Bore M10 Thread
1 1

SKU: KARM-10.CL.R

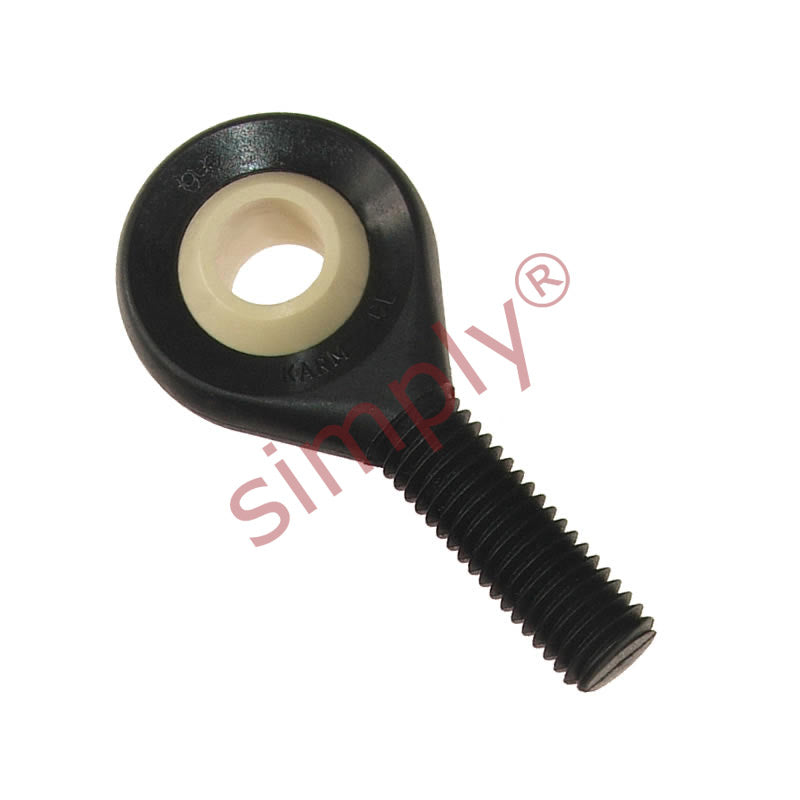

igubal KARM10CLR Right Hand Male Plastic Rod End 10mm Bore M10 Thread

igubal KARM10CLR Right Hand Male Plastic Rod End 10mm Bore M10 Thread
CHF 15.00 ex VAT
CHF 15.00 ex VAT
Sale Sold out

In stock

Price Break
4+ CHF 11.86
9+ CHF 11.20
19+ CHF 11.06
29+ CHF 10.93
39+ CHF 10.80
49+ CHF 10.66
59+ CHF 10.00
69+ CHF 9.86
79+ CHF 9.73
89+ CHF 9.60
99+ CHF 9.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KARM_CL_R_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M10
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
10mm
Technical
d1 10mm
d2 30mm
d3 M10
C1 10.5mm
B 14mm
h 48mm
l1 28mm
l2 63mm
Max pivot angle 35°
Max static tensile strength (short term) 2500 N
Max static tensile strength (long term) 1250 N
Max radial load (short term) 300 N
Max radial load (long term) 150 N
Min tread depth 20mm
Max torque strength outside thread 5 Nm
Max torque through ball (standard) 20 Nm
Max torque through ball (MH) 50 Nm
Weight 11.2 g
