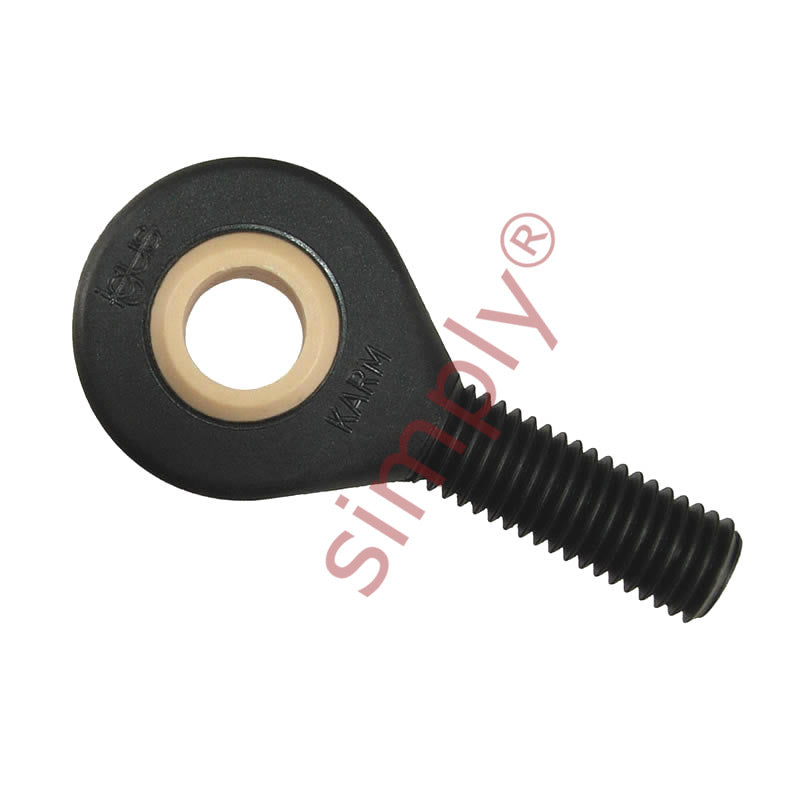

• igubal KARM08 Right Hand Male Plastic Rod End 8mm Bore M8 Thread
1 1

SKU: KARM-08

igubal KARM08 Right Hand Male Plastic Rod End 8mm Bore M8 Thread

igubal KARM08 Right Hand Male Plastic Rod End 8mm Bore M8 Thread
CHF 14.00 ex VAT
CHF 14.00 ex VAT
Sale Sold out

In stock

Price Break
4+ CHF 10.96
9+ CHF 10.34
19+ CHF 10.22
29+ CHF 10.10
39+ CHF 9.97
49+ CHF 9.85
59+ CHF 9.24
69+ CHF 9.11
79+ CHF 8.99
89+ CHF 8.87
99+ CHF 8.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
KARM_DESC
Brand / Quality:
Igus - High Quality
Thread Size:
M8
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
8mm
Technical
d1 8mm
d2 24mm
d3 M8
C1 9mm
B 12mm
h 42mm
l1 25mm
l2 55mm
Max pivot angle 25°
Max static tensile strength (short term) 1700 N
Max static tensile strength (long term) 850 N
Max radial load (short term) 200 N
Max radial load (long term) 100 N
Min thread depth 18mm
Max torque strength outside thread 2 Nm
Max torque through ball (standard) 12 Nm
Max torque through ball (MH) 40 Nm
Weight 7.1 g
