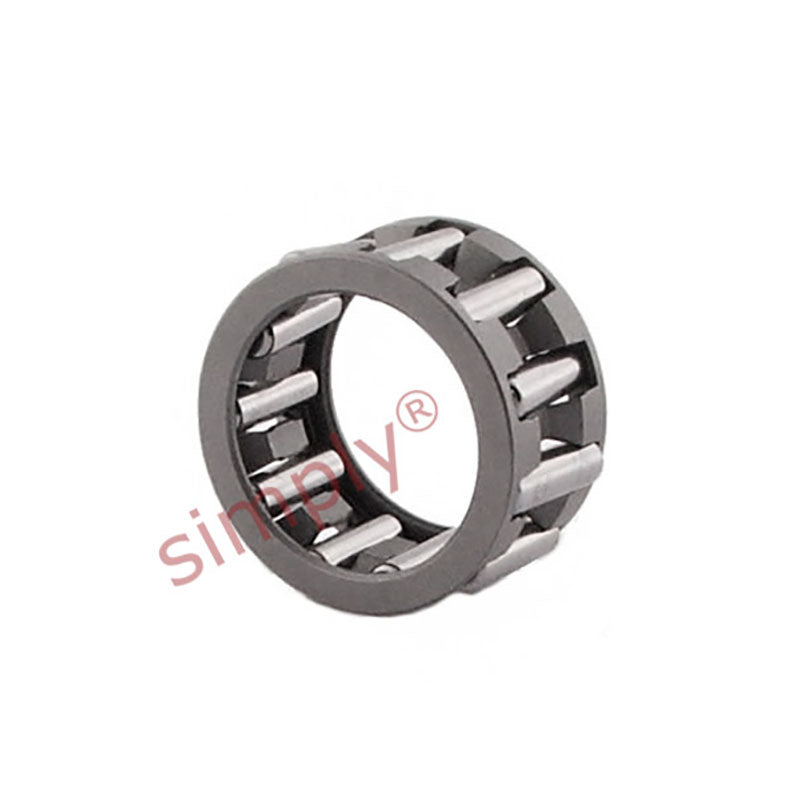

• Major Brand K45x59x18TN Needle Roller Cage Assembly 45x59x18mm
1 1

SKU: K45x59x18TN-MB

Major Brand K45x59x18TN Needle Roller Cage Assembly 45x59x18mm

Major Brand K45x59x18TN Needle Roller Cage Assembly 45x59x18mm
CHF 26.00 ex VAT
CHF 26.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 20.62
19+ CHF 19.46
29+ CHF 19.23
39+ CHF 19.00
49+ CHF 18.76
74+ CHF 18.53
99+ CHF 17.37
199+ CHF 17.14
249+ CHF 16.91
499+ CHF 16.68
999+ CHF 16.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C
Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
45mm
Outside Diameter:
59mm
Width:
18mm
Technical
Fw 45mm
Ew 59mm
U 18mm
Dynamic load 44000 N
Static load 53000 N
Fatigue load limit Pu 6550 N
Speed in grease 6000 rpm
Speed in oil 8500 rpm
Weight 72 g
