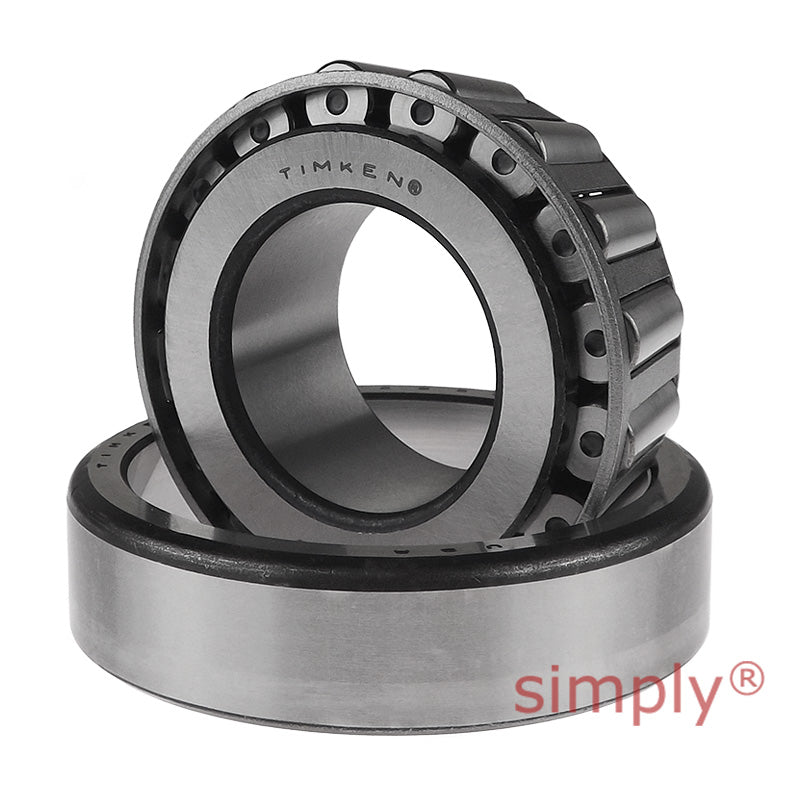

• Timken JW6049/JW6010 TS Single-Row Taper Roller Bearing 2.3622x4.9213x1.4567 inch
1 1

SKU: JW6049/JW6010-TIM

Timken JW6049/JW6010 TS Single-Row Taper Roller Bearing 2.3622x4.9213x1.4567 inch

Timken JW6049/JW6010 TS Single-Row Taper Roller Bearing 2.3622x4.9213x1.4567 inch
CHF 226.00 ex VAT
CHF 226.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 180.10
20+ CHF 169.98
30+ CHF 167.96
40+ CHF 165.94
50+ CHF 163.91
75+ CHF 161.89
100+ CHF 151.77
200+ CHF 149.75
250+ CHF 147.72
500+ CHF 145.70
1000+ CHF 141.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
60mm
Outside Diameter:
125mm
Width:
37mm
Technical
d 60mm = 2.3622 inch
D 125mm = 4.9213 inch
T 37mm = 1.4567 inch
Dynamic (1) C1 159000N
Factors (5) e 0.82
Factors (5) Y 0.73
Dynamic (2) C90 41200N
Dynamic (2) Ca90 57900N
Factors (5) K 0.71
Static C0 210000N
Bearing B 33.5mm = 1.3189 inch
Bearing C 26mm = 1.0236 inch
Bearing a(3) 4.8mm = 0.19 inch
Shaft max shaft fillet radius R(4) 3mm = 0.12 inch
Shaft backing shoulder diameter da 72mm = 2.83 inch
Shaft backing shoulder diameter db 89mm = 3.5 inch
Housing backing shoulder diameter r(4) 3mm = 0.12 inch
Housing backing shoulder diameter Da 119mm = 4.69 inch
Housing backing shoulder diameter Db 104mm = 4.09 inch
Cage Aa 6mm = 0.24 inch
Cage Ab 4mm = 0.16 inch
G1 64.1
G2 18.5
Cg 0.0883
