SKU: JSB045CP0

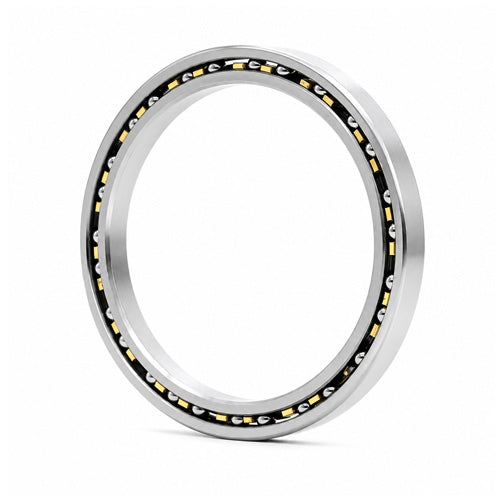

Silverthin JSB045CP0 Thin Section Sealed Radial Contact Ball Bearing 4.5x5.125x0.312 inch - Allow 7-10 Days
Silverthin JSB045CP0 Thin Section Sealed Radial Contact Ball Bearing 4.5x5.125x0.312 inch - Allow 7-10 Days
Equivalent to: JB045CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 114.3mm = 4-1/2 inch
- Outside Diameter:
- 130.18mm = 5-1/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| B | 4.5 inch |
|---|---|
| D | 5.125 inch |
| Width | 0.312 inch |
| L1 | 4.636 inch |
| L2 | 4.862 inch |
| Static Radial Load | 8.705 kN |
| Dynamic Radial Load | 3.327 kN |
| Torque Max No Load | 28 Oz-In |
| Weight | 0.1542 kg |
