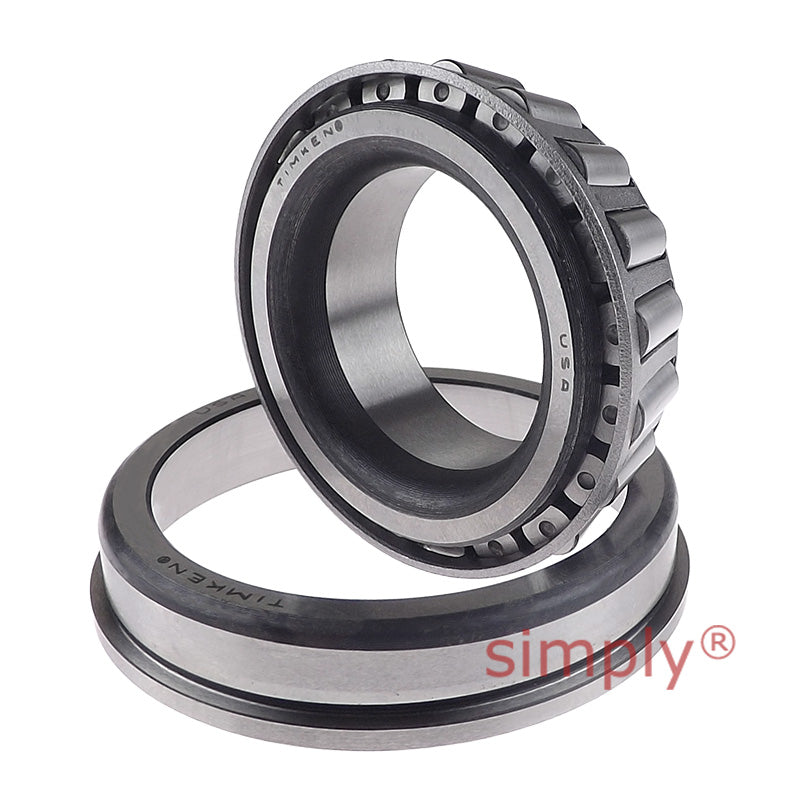

Timken JP9049/JP9010B TSF Single-Row Taper Roller Bearing 3.5433x5.315x0.9449 inch
Timken JP9049/JP9010B TSF Single-Row Taper Roller Bearing 3.5433x5.315x0.9449 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 135mm
- Width:
- 24mm
Technical
Technical
| d | 90mm = 3.5433 inch |
|---|---|
| D | 135mm = 5.315 inch |
| T1 | 10.5mm = 0.4134 inch |
| Dynamic (1) C1 | 110000N |
| Factors (5) e | 0.49 |
| Factors (5) Y | 1.21 |
| Dynamic (2) C90 | 28400N |
| Dynamic (2) Ca90 | 24000N |
| Factors (5) K | 1.18 |
| Static Co | 155000N |
| Bearing B | 22.5mm = 0.8858 inch |
| Bearing C | 17.5mm = 0.689 inch |
| Bearing a(3) | 5.6mm = 0.22 inch |
| Bearing D1 | 142mm = 5.5906 inch |
| Bearing C2 | 4mm = 0.1575 inch |
| Shaft max shaft fillet radius R(4) | 2mm = 0.08 inch |
| Shaft backing shoulder diameter da | 97mm = 3.82 inch |
| Shaft backing shoulder diameter db | 100mm = 3.94 inch |
| Housing backing shoulder diameter Da | 133mm = 5.24 inch |
| G1 | 83.8 |
| G2 | 46 |
| Cg | 0.1196 |
