SKU: IRZ6x10x12IS1-MB

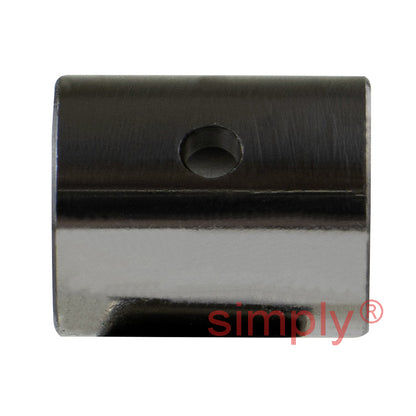

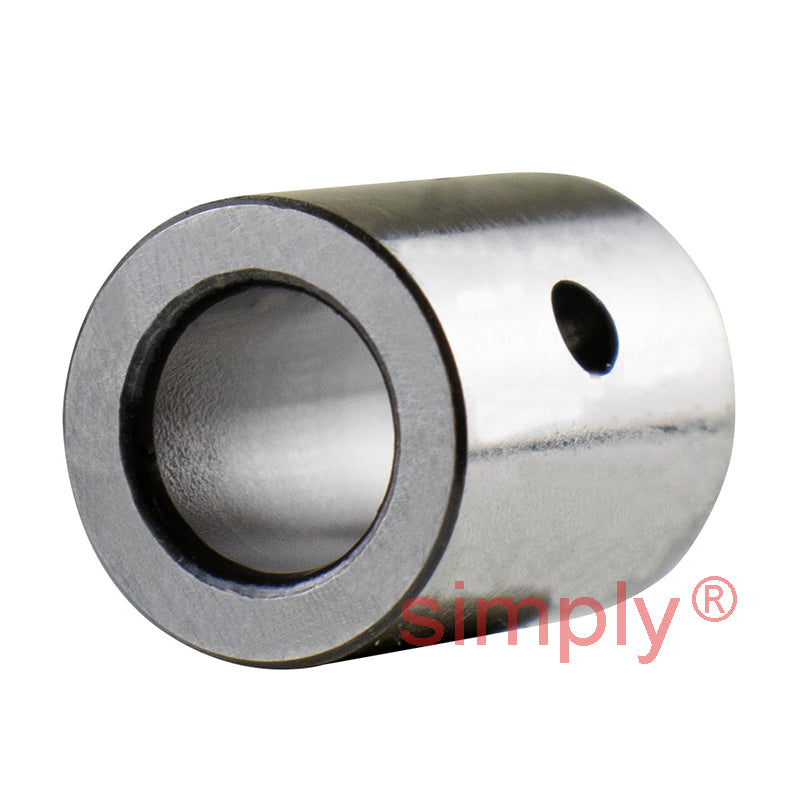

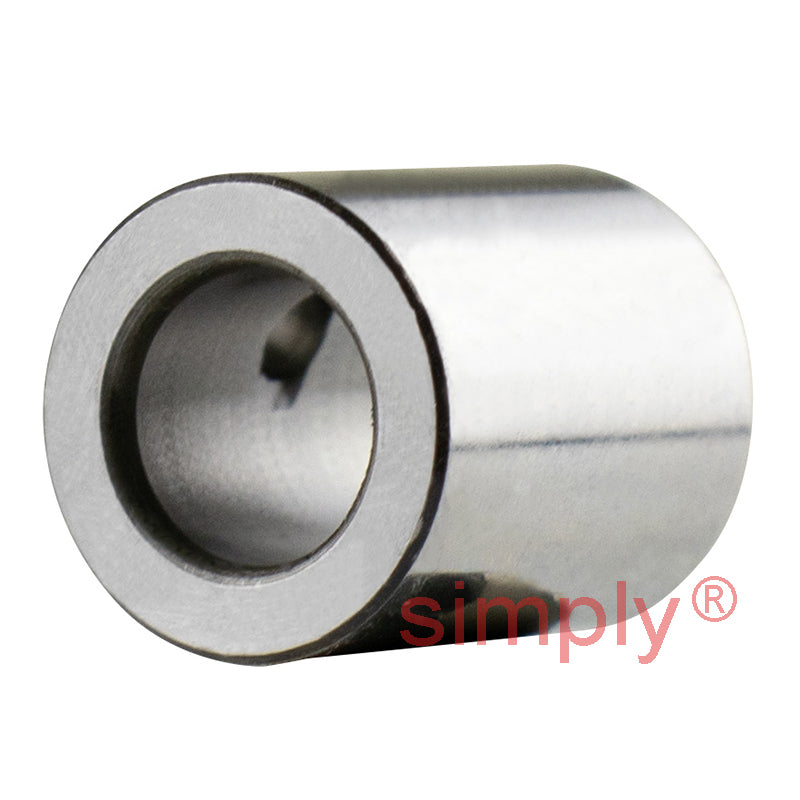

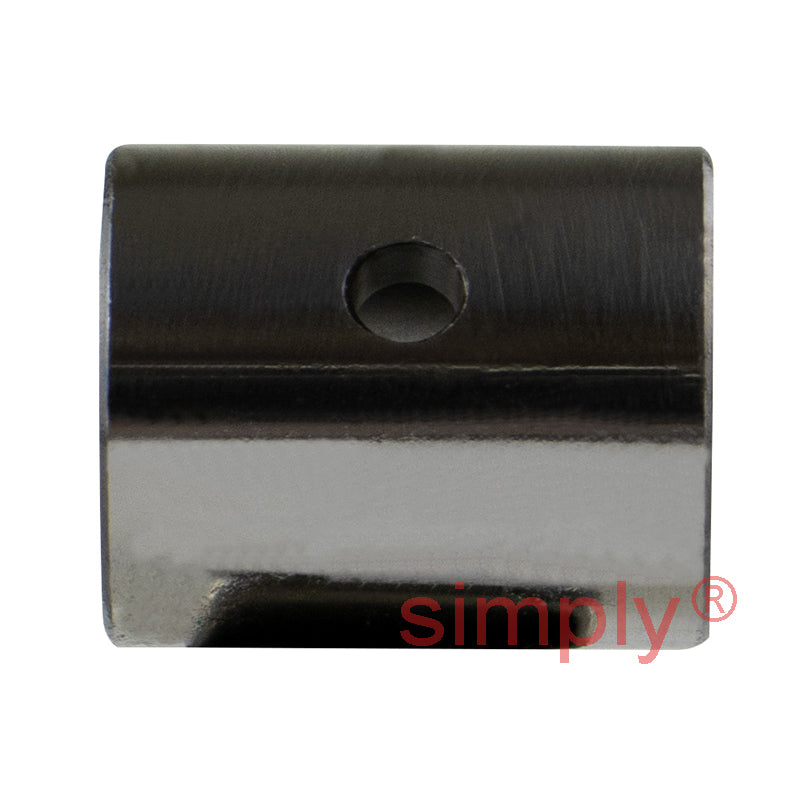

Major Brand Needle Roller Inner Ring with Lubrication Hole IRZ6x10x12IS1mm

Name: Major Brand Needle Roller Inner Ring with Lubrication Hole IRZ6x10x12IS1mm
Brand: Major Brand
SKU: IRZ6x10x12IS1-MB
Price: 8.00 CHF
Availability: InStock

CHF 8.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 6.25

19+ CHF 5.90

29+ CHF 5.83

39+ CHF 5.76

49+ CHF 5.69

74+ CHF 5.62

99+ CHF 5.27

199+ CHF 5.20

249+ CHF 5.13

499+ CHF 5.05

999+ CHF 4.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

IRZ Series Inner Rings : Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use of the full width of the bearing surface when used with with needle roller bearings no lead is provided. All IRZ inner rings are provided with a lubrication hole.
Benefits: Hardened and ground, precision component, offers the use of the full width of the bearing surface.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 6mm
Outside Diameter:: 10mm
Width:: 12mm

Technical

d	6mm
F	10mm
B	12mm
r1r2	0.3mm
Weight	4.6 g
