SKU: I31G100_1/4

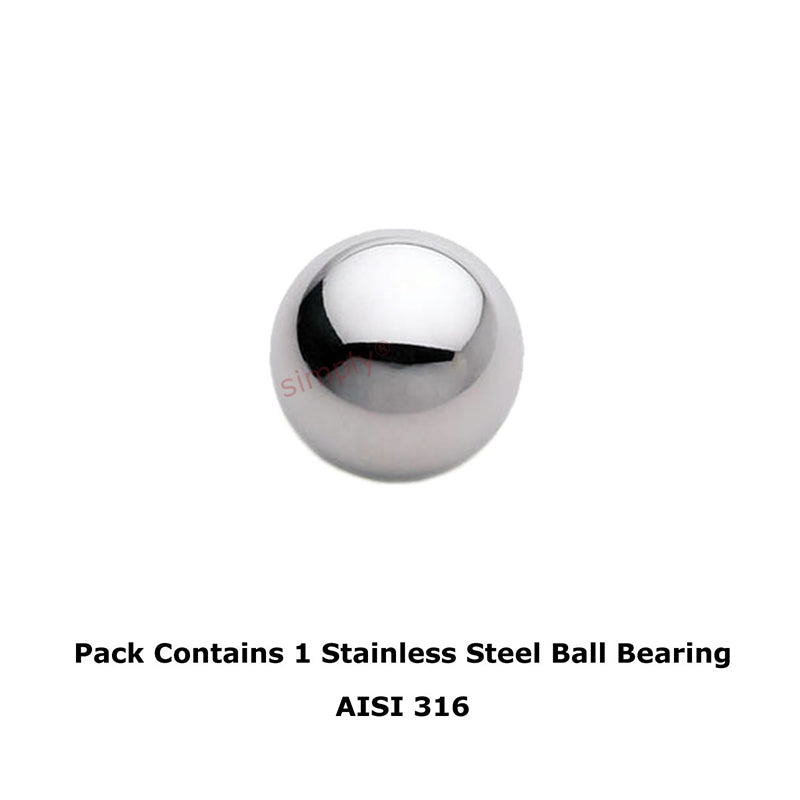

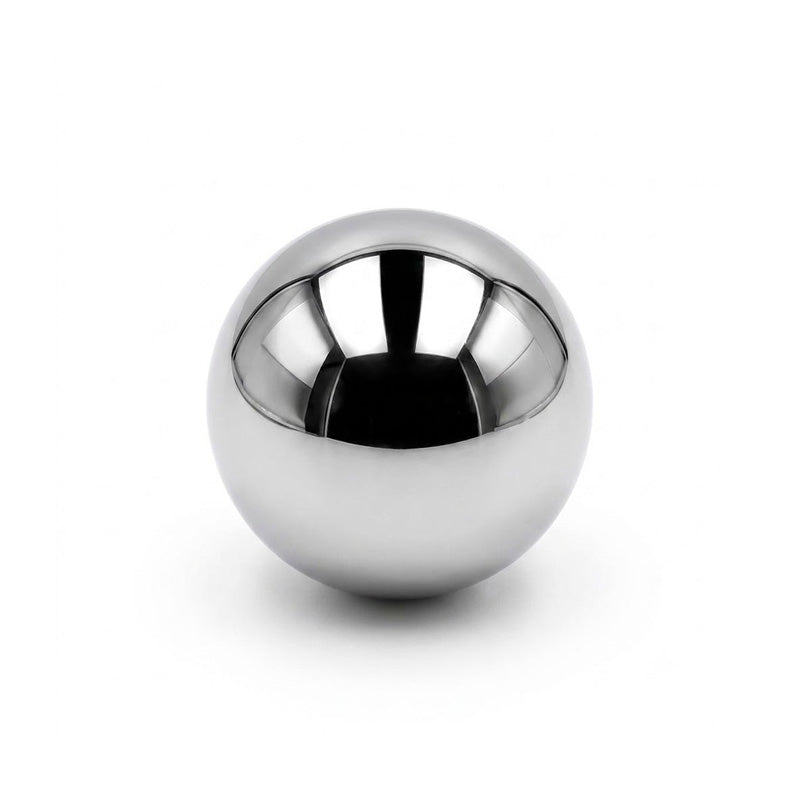

1/4 inch Diameter Grade 100 AISI 316 Stainless Steel Ball Bearing
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
Industry Standard Grade 100 316 Stainless Ball Bearings: High Quality Graded 316 Stainless Steel Ball bearings made from AISI 316 Stainless Steel with a hardness of 25 - 39 Rockwell Scale equivalent to 140 - 160 HB (Brinnel Scale). These are the same stainless 316 steel balls used to manufacture bearing assemblies and have a high duty and life cycle.
Unhardened austenitic stainless steel with good corrosion resistance to sea water, dilute nitric, sulphuric and acetic acids, photo chemicals, inks, bleaches, dyes etc. Can be machined / drilled
Manufactured in compliance to the following international standards: AISI 316 / AFN Z6CND17-11 / DIN X5 Cr Ni Mo 17122 / JIS SUS 316 / Wks 1.4401
- Brand / Quality:
- Simply Loose Ball - High Quality
- Outside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Grade:
- 100
Technical
| Material | 316 Stainless Steel |
|---|---|
| Min crush load | 2280kg |
| Hardness | 25-39 HRC |
| Hardness Depth | Unhardened |
| Corrosion Resistance | Excellent |
| Note | Can be Drilled |
| Approx Weight Each | 1.05g |
| Attracted to Magnets | No |
| Avg Qty / Litre | 4550 |
