SKU: HTD475-15-95
HTD475-15-95 Major Brand Synchronous Belt 15mm Wide 5mm Pitch 95 Teeth
HTD475-15-95 Major Brand Synchronous Belt 15mm Wide 5mm Pitch 95 Teeth
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
Equivalent to: 5M-475
In stock
Price Break
3+
CHF 6.93
5+
CHF 6.54
10+
CHF 6.46
15+
CHF 6.38
20+
CHF 6.31
30+
CHF 6.23
40+
CHF 5.84
50+
CHF 5.76
60+
CHF 5.68
75+
CHF 5.61
100+
CHF 5.45
Quantity
Couldn't load pickup availability
Description
Description
|
HTD Synchronous Drive Belts 5mm Pitch: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Synchronous belt drives become more economical, safer, and they render possible a synchronous transmission equivalent to chain and gear drives. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 15mm
- Belt Depth Approx:
- 3.6mm
- Belt Length Approx:
- 475mm
- Number of Teeth:
- 95
Technical
Technical

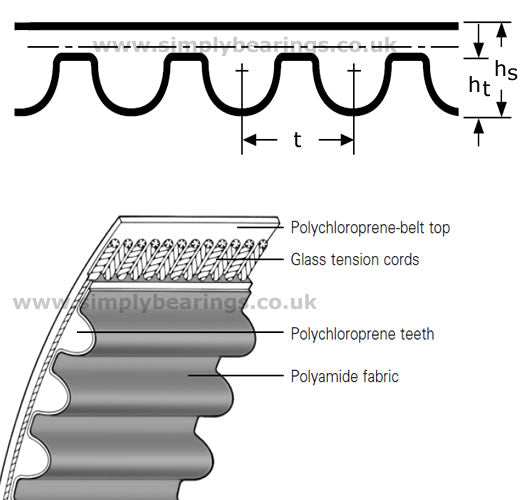

| Pitch length | 475mm |
|---|---|
| Belt width | 15mm |
| Number of teeth | 95 |
| Tooth pitch t | 5mm |
| Belt thickness h<sub>s</sub> | 3.6mm |
| Tooth height h<sub>t</sub> | 2.1mm |
