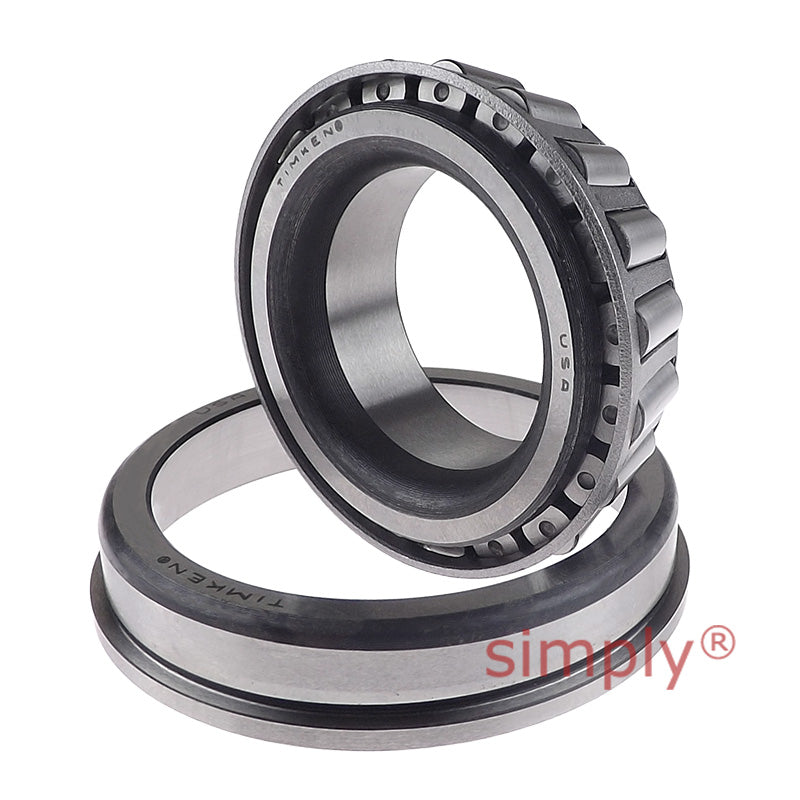

• Timken HM911249/HM911210B TSF Single-Row Taper Roller Bearing 2.4375x5.125x1.437 inch
1 1

SKU: HM911249/HM911210B-TIM

Timken HM911249/HM911210B TSF Single-Row Taper Roller Bearing 2.4375x5.125x1.437 inch

Timken HM911249/HM911210B TSF Single-Row Taper Roller Bearing 2.4375x5.125x1.437 inch
CHF 955.00 ex VAT
CHF 955.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 763.63
20+ CHF 720.73
30+ CHF 712.15
40+ CHF 703.57
50+ CHF 694.99
75+ CHF 686.41
100+ CHF 643.51
200+ CHF 634.93
250+ CHF 626.35
500+ CHF 617.77
1000+ CHF 600.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Outside Diameter:
130.18mm = 5.125 (5-1/8) inch
Width:
36.51mm = 1.437 (1-7/16) inch
Technical
d 61.912mm = 2.4375 inch
D 130.175mm = 5.125 inch
T1 19.05mm = 0.75 inch
Dynamic (1) C1 154000N
Factors (5) e 0.82
Factors (5) Y 0.73
Dynamic (2) C90 40000N
Dynamic (2) Ca90 56200N
Factors (5) K 0.71
Static Co 183000N
Bearing B 33.338mm = 1.3125 inch
Bearing C 23.812mm = 0.9375 inch
Bearing a(3) 5.3mm = 0.21 inch
Bearing D1 136.525mm = 5.375 inch
Bearing C2 6.35mm = 0.25 inch
Shaft max shaft fillet radius R(4) 3.5mm = 0.14 inch
Shaft backing shoulder diameter da 74mm = 2.91 inch
Shaft backing shoulder diameter db 91mm = 3.58 inch
Housing backing shoulder diameter Da 123.5mm = 4.87 inch
G1 56.4
G2 16.5
Cg 0.0842
