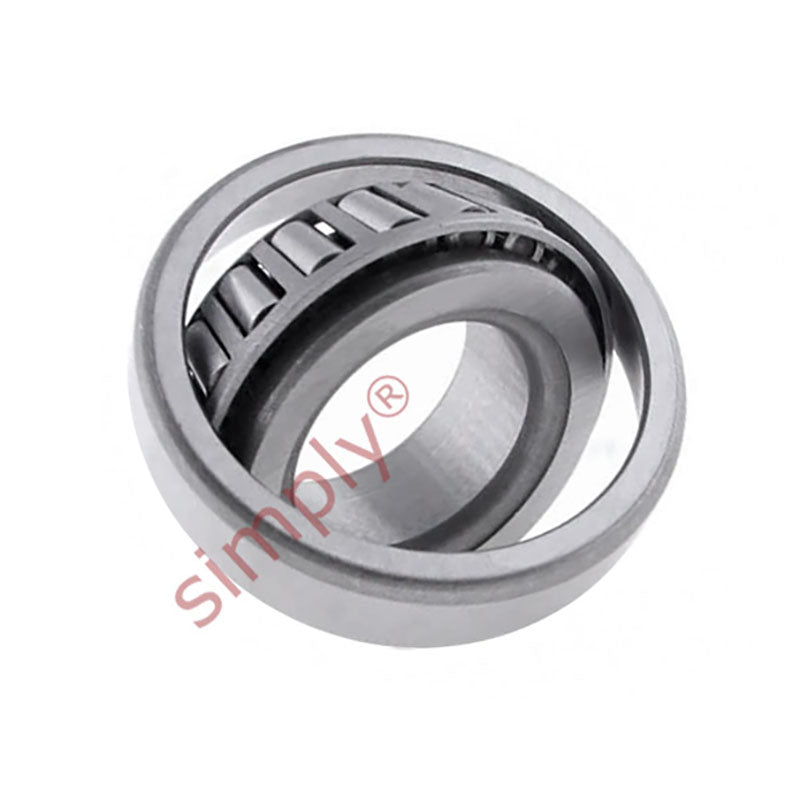

SKF HM266449/410 Imperial Taper Roller Bearing 15.125x21.5x4.125 inches

Name: SKF HM266449/410 Imperial Taper Roller Bearing 15.125x21.5x4.125 inches
Brand: SKF
SKU: HM266449/410-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 384.18mm = 15.125 (15-1/8) inch
Outside Diameter:: 546.1mm = 21.5 (21-1/2) inch
Width:: 104.78mm = 4.125 (4-1/8) inch
Seals / Shields:: None

Technical

d	384.175mm
D	546.1mm
T	104.775mm
Dynamic load	1870 kN
Static load	4150 kN
Fatigue load limit Pu	320 kN
Reference speed	750 rpm
Limiting speed	1100 rpm
Weight	77 kg
d1	458mm
B	104.775mm
C	82.55mm
r1r2 min	6.4mm
r3r4 min	6.4mm
a	96mm
da max	418mm
db min	416mm
Da min	492mm
Da max	514mm
Db min	520mm
Ca min	15mm
Cb min	22mm
ra max	6mm
rb max	6mm
Calculation factor e	0.33
Calculation factor Y	1.8
Calculation factor Y0	1
