SKU: HK0408T2-NTN

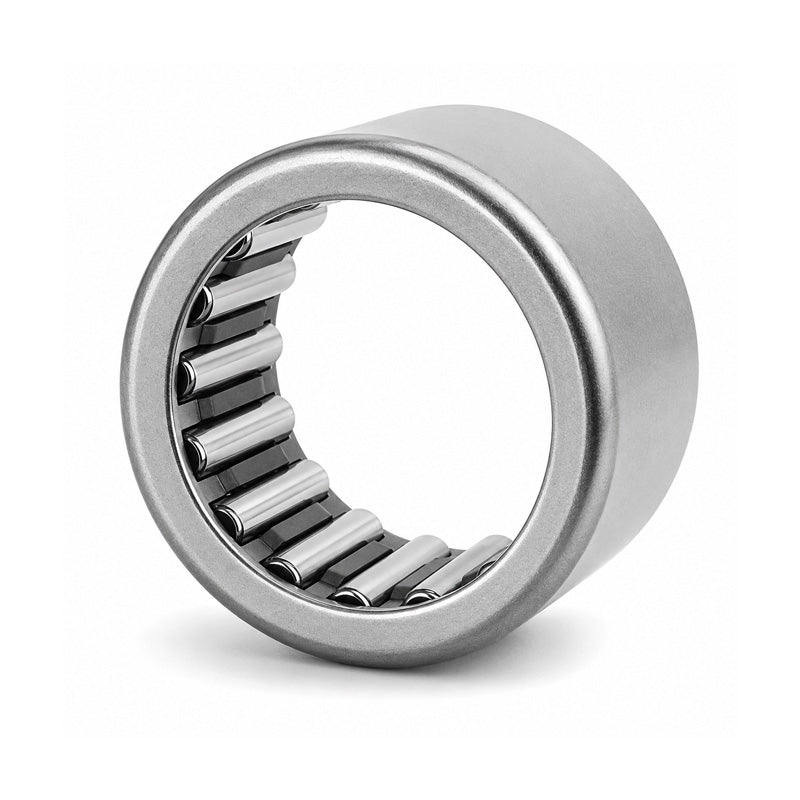

NTN HK0408T2 Drawn Cup Needle Roller Bearing with Open End 4x8x8mm
NTN HK0408T2 Drawn Cup Needle Roller Bearing with Open End 4x8x8mm
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
In stock
Price Break
3+
CHF 4.03
4+
CHF 3.81
9+
CHF 3.76
19+
CHF 3.71
49+
CHF 3.67
99+
CHF 3.62
499+
CHF 3.40
999+
CHF 3.35
1999+
CHF 3.31
2999+
CHF 3.26
4999+
CHF 3.17
Quantity
Couldn't load pickup availability
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 8mm
- Width:
- 8mm
Technical
Technical

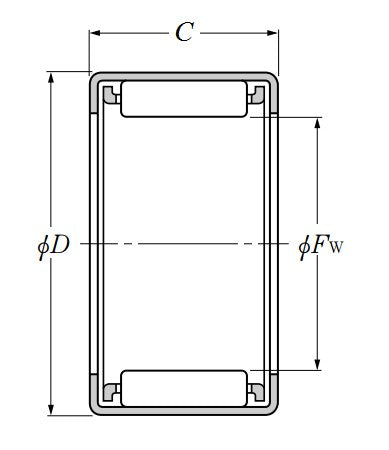

| Fw - Inside diameter | 4mm |
|---|---|
| D - Outside diameter | 8mm |
| C - Width of bearing, drawn cup or outer ring | 8mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 1.77 kN |
| C0r - Static load rating | 1.27 kN |
| N - Grease lubrication limit speed | 30000 tr/min |
| N - Oil lubrication limit speed | 45000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
