SKU: HCT315-48

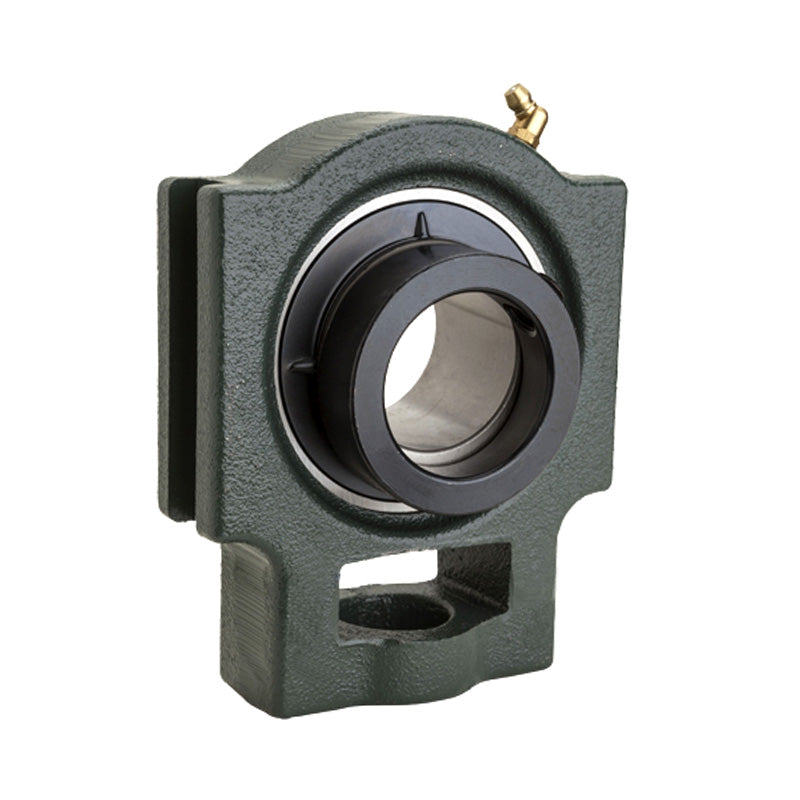

HCT315-48 Imperial Cast Iron Take Up Unit Housing with 3 inch Bore Eccentric Collar Insert
HCT315-48 Imperial Cast Iron Take Up Unit Housing with 3 inch Bore Eccentric Collar Insert
Out of stock
Share this product
Description
Description
HCT300 Series Heavy-Duty Take-Up Housing Units: Heavy-duty bearing unit supplied with a fully sealed bearing insert fitted in the slotted take-up housing and include a grease nipple to facilitate re-lubrication. The bearing insert provided with this housing has an eccentric collar. The inserts can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- HCT
Technical
Technical
| d | 3 inch |
|---|---|
| o | 36mm |
| g | 25mm |
| p | 132mm |
| q | 85mm |
| s | 46mm |
| b | 150mm |
| k | 26mm |
| e | 192mm |
| a | 216mm |
| w | 262mm |
| j | 90mm |
| l | 55mm |
| r | 102mm |
| h | 160mm |
| Bi | 100mm |
| n | 37.3mm |
| Bearing No. | HC315-48 |
| Housing No. | T315 |
| Weight | 13.64 kg |
