SKU: HCT308-24

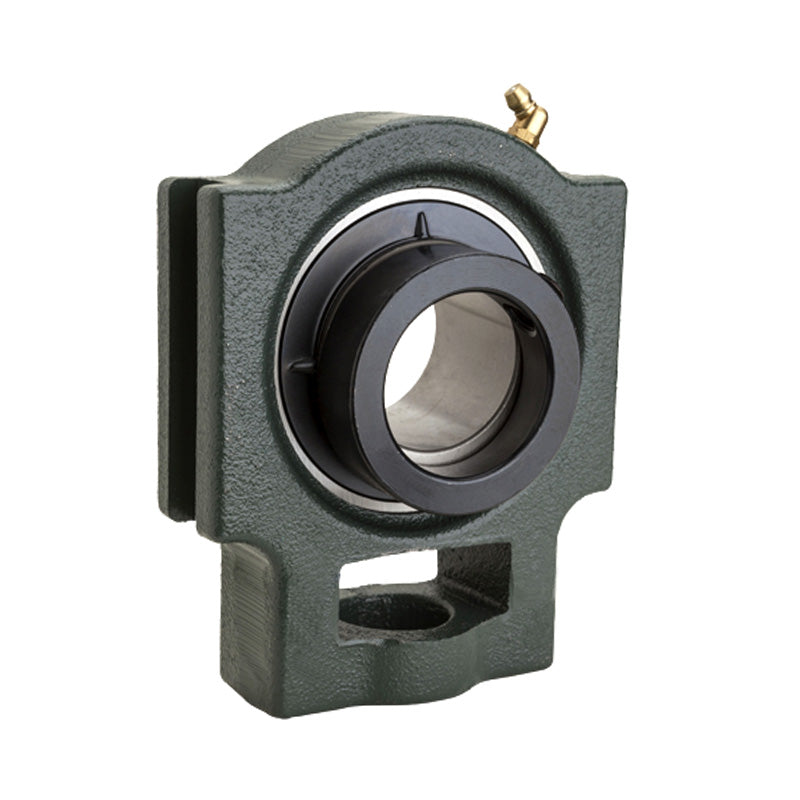

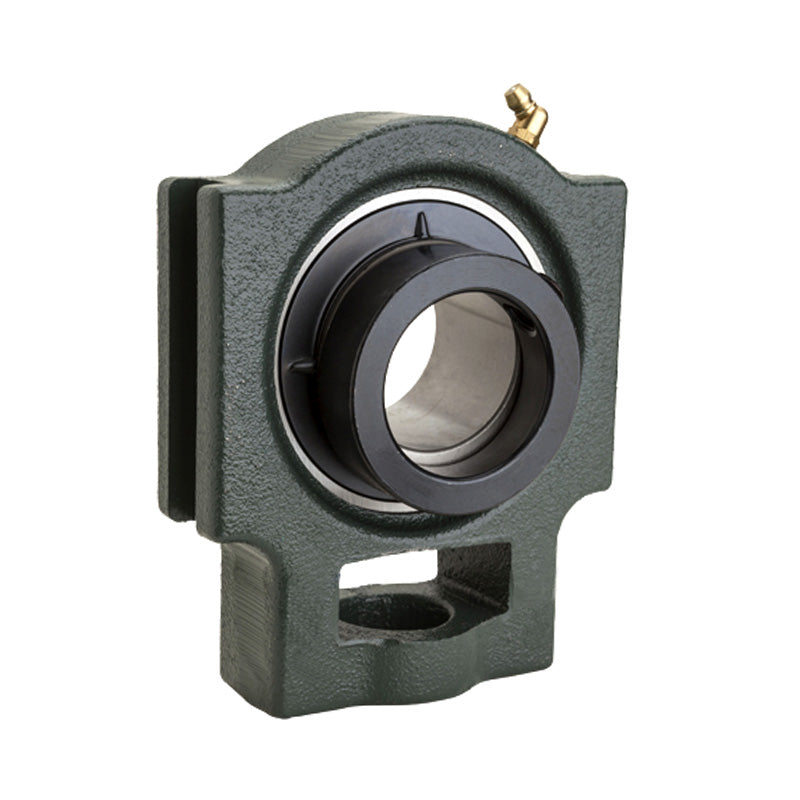

HCT308-24 Imperial Cast Iron Take Up Unit Housing with 1-1/2 inch Bore Eccentric Collar Insert
HCT308-24 Imperial Cast Iron Take Up Unit Housing with 1-1/2 inch Bore Eccentric Collar Insert
Out of stock
Share this product
Description
Description
HCT300 Series Heavy-Duty Take-Up Housing Units: Heavy-duty bearing unit supplied with a fully sealed bearing insert fitted in the slotted take-up housing and include a grease nipple to facilitate re-lubrication. The bearing insert provided with this housing has an eccentric collar. The inserts can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- HCT
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| o | 22mm |
| g | 17mm |
| p | 83mm |
| q | 50mm |
| s | 32mm |
| b | 89mm |
| k | 18mm |
| e | 112mm |
| a | 124mm |
| w | 162mm |
| j | 50mm |
| l | 34mm |
| r | 62mm |
| h | 100mm |
| Bi | 57.1mm |
| n | 19.8mm |
| Bearing No. | HC308-24 |
| Housing No. | T308 |
| Weight | 3.12 kg |
