SKU: HCT307-23

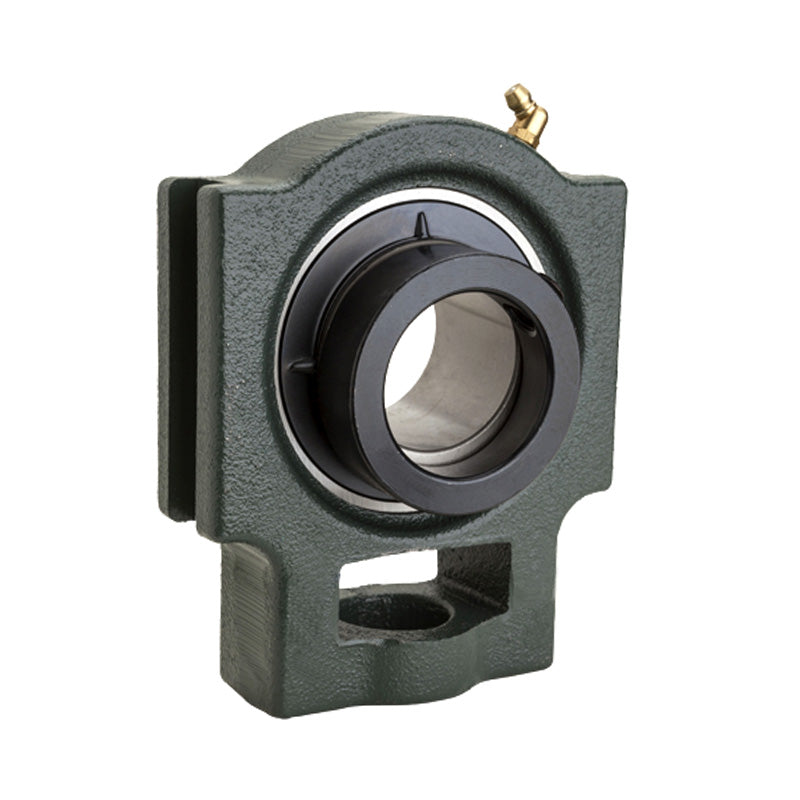

HCT307-23 Imperial Cast Iron Take Up Unit Housing with 1-7/16 inch Bore Eccentric Collar Insert
HCT307-23 Imperial Cast Iron Take Up Unit Housing with 1-7/16 inch Bore Eccentric Collar Insert
Out of stock
Share this product
Description
Description
HCT300 Series Heavy-Duty Take-Up Housing Units: Heavy-duty bearing unit supplied with a fully sealed bearing insert fitted in the slotted take-up housing and include a grease nipple to facilitate re-lubrication. The bearing insert provided with this housing has an eccentric collar. The inserts can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- HCT
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| o | 20mm |
| g | 15mm |
| p | 75mm |
| q | 45mm |
| s | 30mm |
| b | 80mm |
| k | 16mm |
| e | 100mm |
| a | 111mm |
| w | 150mm |
| j | 45mm |
| l | 32mm |
| r | 56mm |
| h | 94mm |
| Bi | 51.6mm |
| n | 18.3mm |
| Bearing No. | HC307-23 |
| Housing No. | T307 |
| Weight | 2.33 kg |
