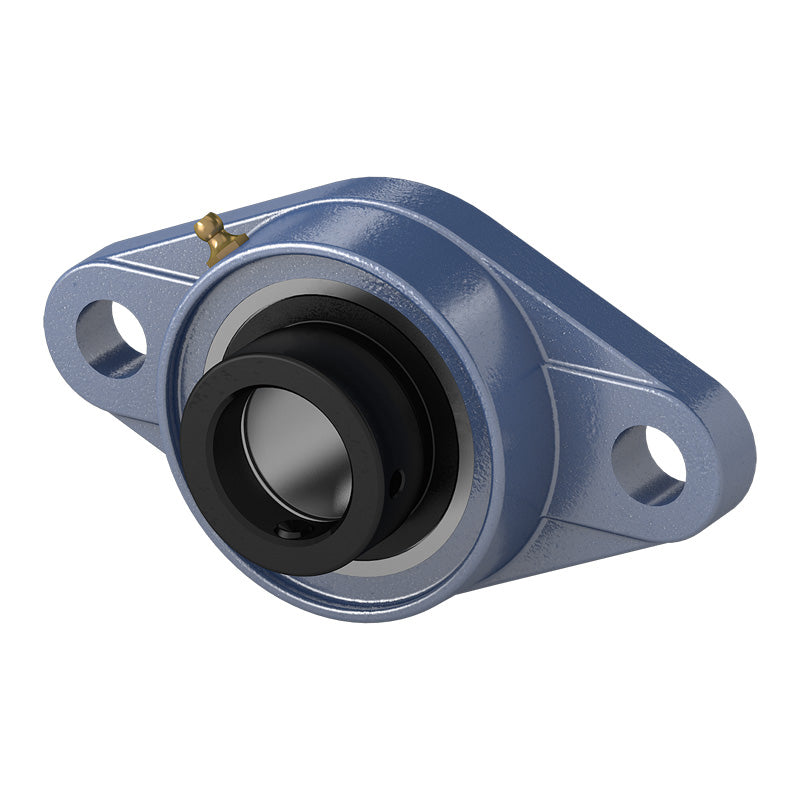

HCFL206-20 Imperial Two Bolt Cast Iron Oval Housing with 1-1/4 inch Eccentric Collar Insert

HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

31.75mm = 1.25 (1-1/4) inch

Style:

HCFL

Bolt Hole Centres:

117.08mm = 4.609 (4-39/64) inch
