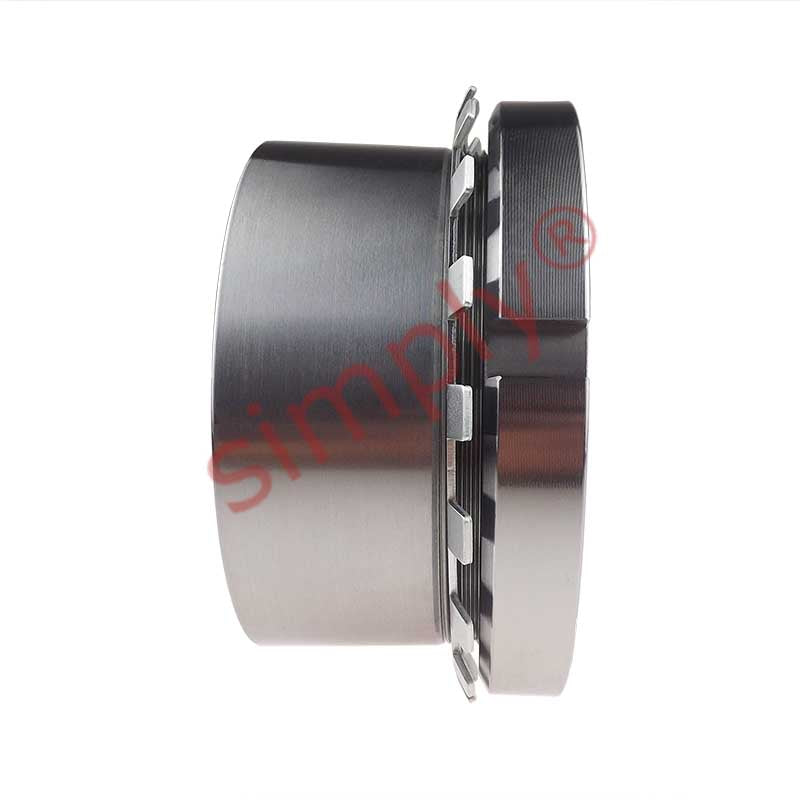

• FAG H310 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
  • FAG H310 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
  • FAG
1 3

SKU: H310-FAG

FAG H310 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft

FAG H310 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
CHF 17.00 ex VAT
CHF 17.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 13.55
19+ CHF 12.78
29+ CHF 12.63
39+ CHF 12.48
49+ CHF 12.33
74+ CHF 12.18
99+ CHF 11.42
199+ CHF 11.26
249+ CHF 11.11
499+ CHF 10.96
999+ CHF 10.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
FAG - High Quality
Inside Diameter:
45mm
Outside Diameter:
70mm
Width:
42mm
Technical
--- Dimensions
d1 45mm
d 50mm
d3 70mm
B1 42mm
B2 12mm
G Thread 50x1.5mm
Weight 0.29 kg

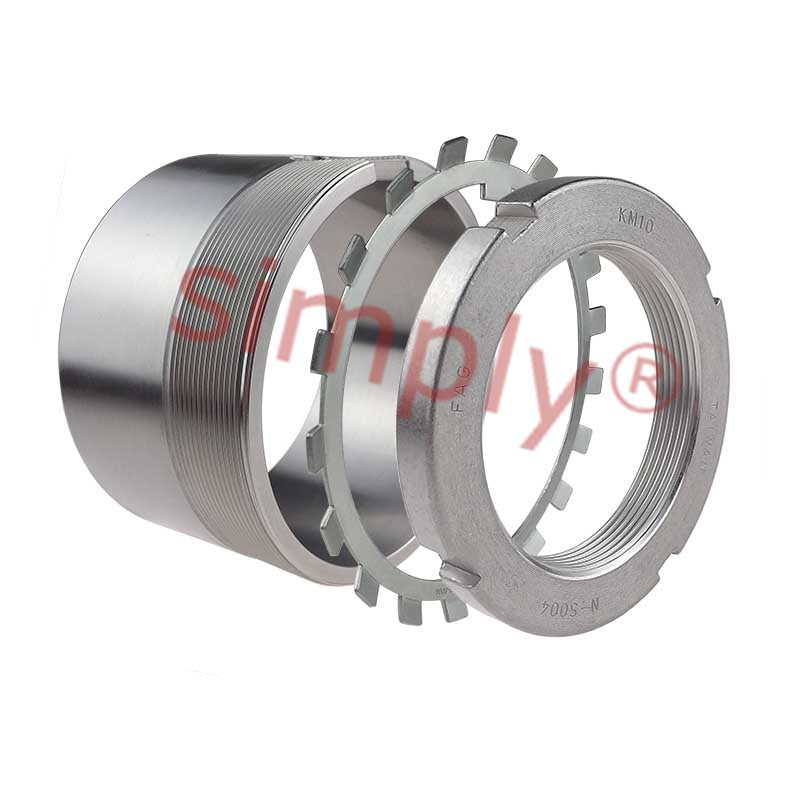

--- Assembly Parts
Sleeve H310
Nut KM10
Washer MB10
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2210K+taper+self+open>2210K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1310K+taper+self+open>1310K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22210K+taper>22210K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21310K+taper>21310K</a>
