SKU: H244849D/H244810/H244810EA-TIM

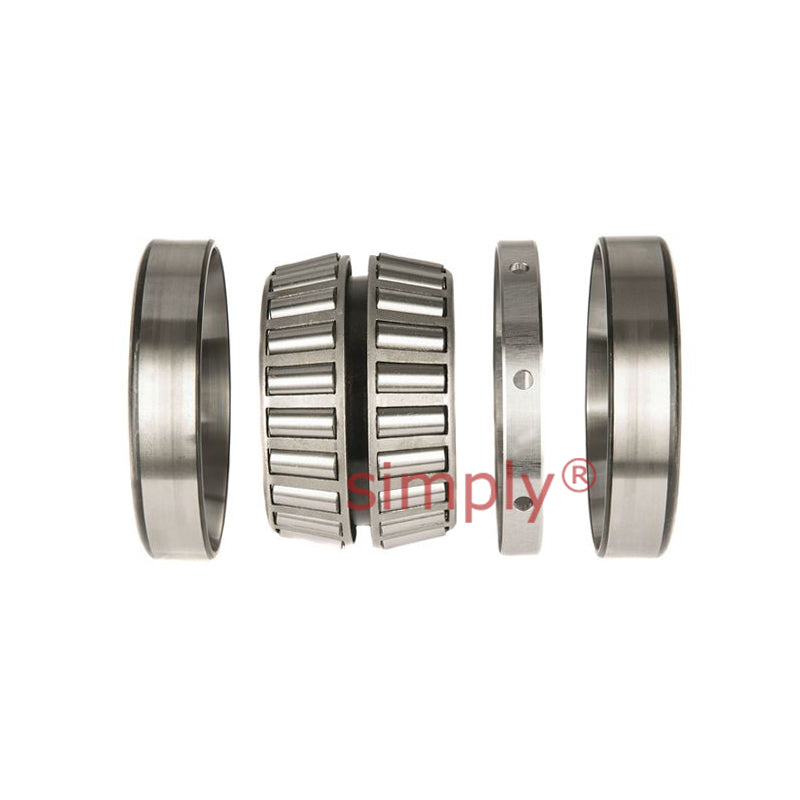

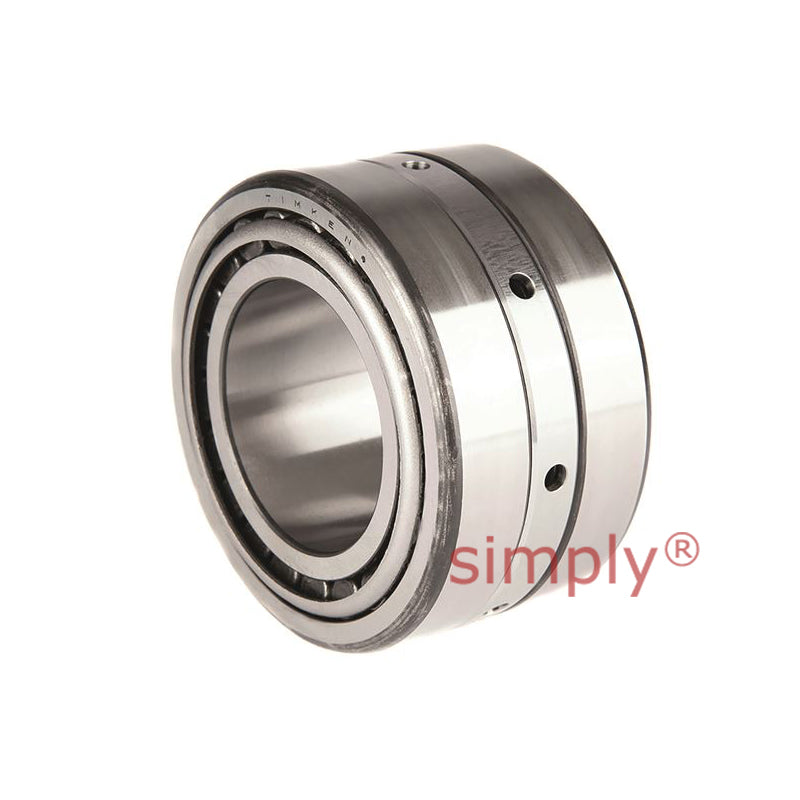

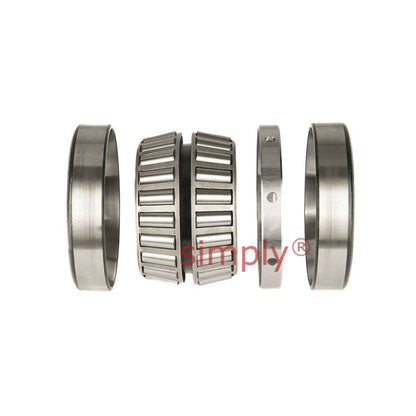

Timken H244849D/H244810/H244810EA TDI Double Inner Race Taper Roller Bearing 8.625x14.125x7.75x7.875 inch
Timken H244849D/H244810/H244810EA TDI Double Inner Race Taper Roller Bearing 8.625x14.125x7.75x7.875 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 219.08mm = 8.625 (8-5/8) inch
- Outside Diameter:
- 358.78mm = 14.125 (14-1/8) inch
- Width:
- 196.85mm = 7.75 (7-3/4) inch
Technical
Technical
| d | 219.075mm = 8.625 inch |
|---|---|
| D | 358.775mm = 14.125 inch |
| T | 196.85mm = 7.75 inch |
| C | 200.025mm = 7.875 inch |
| Dynamic (1) C1 | 2470000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 367000N |
| Dynamic (2) Ca90 | 209000N |
| Dynamic (2) C90(2) | 639000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 242mm = 9.53 inch |
| Housing max shaft fillet radius r (3) | 6.4mm = 0.25 inch |
| Housing backing shoulder diameter Db | 323mm = 12.72 inch |
| G1 | 1630 |
| G2 | 150 |
| Cg | 0.154 |
