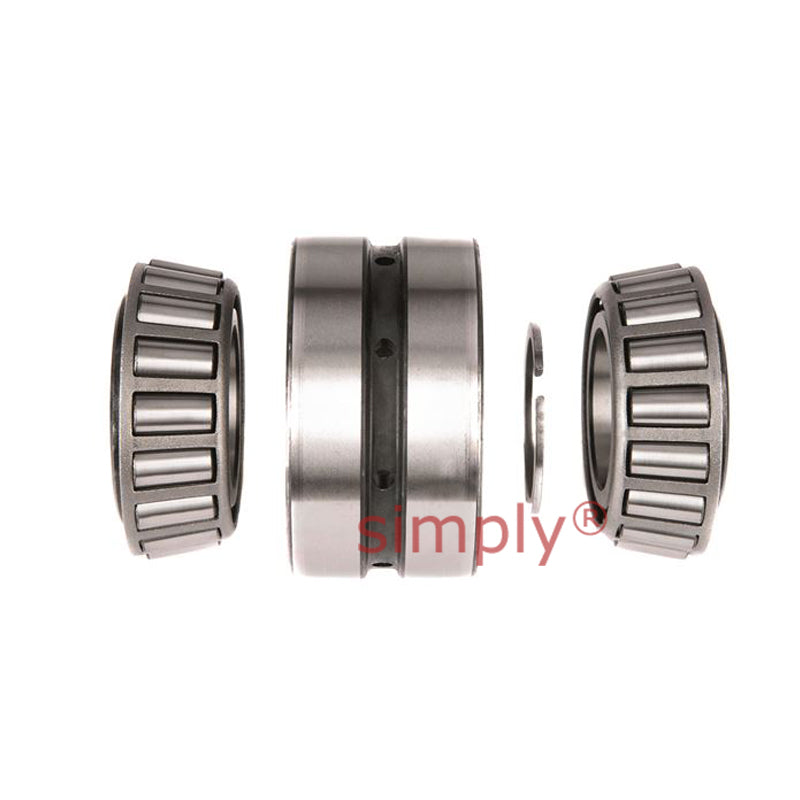

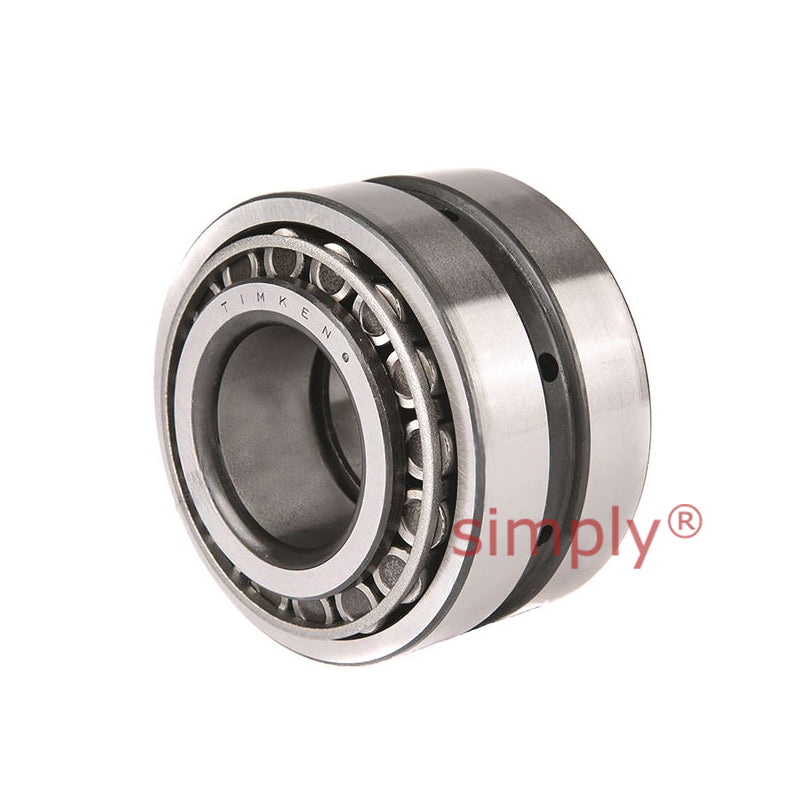

Timken H242649/H242610CD/H242649XB TDO Double Outer Race Taper Roller Bearing 8.125x13.25x8.3125x6.6875 inch
Timken H242649/H242610CD/H242649XB TDO Double Outer Race Taper Roller Bearing 8.125x13.25x8.3125x6.6875 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 206.38mm = 8.125 inch
- Outside Diameter:
- 336.55mm = 13.25 inch
- Width:
- 211.14mm = 8.3125 inch
Technical
Technical
| d | 206.375mm = 8.125 inch |
|---|---|
| D | 336.55mm = 13.25 inch |
| T | 211.138mm = 8.3125 inch |
| C | 169.862mm = 6.6875 inch |
| Dynamic (1) C1 | 2180000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 325000N |
| Dynamic (2) Ca90 | 185000N |
| Dynamic (2) C90(2) | 566000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R(3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter db | 231mm = 9.09 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 318mm = 12.51 inch |
| Pin Ka | 28.4mm = 1.12 inch |
| Pin Kb | 10.2mm = 0.4 inch |
| G1 | 1400 |
| G2 | 135 |
| Cg | 0.1465 |
