SKU: H210-MB

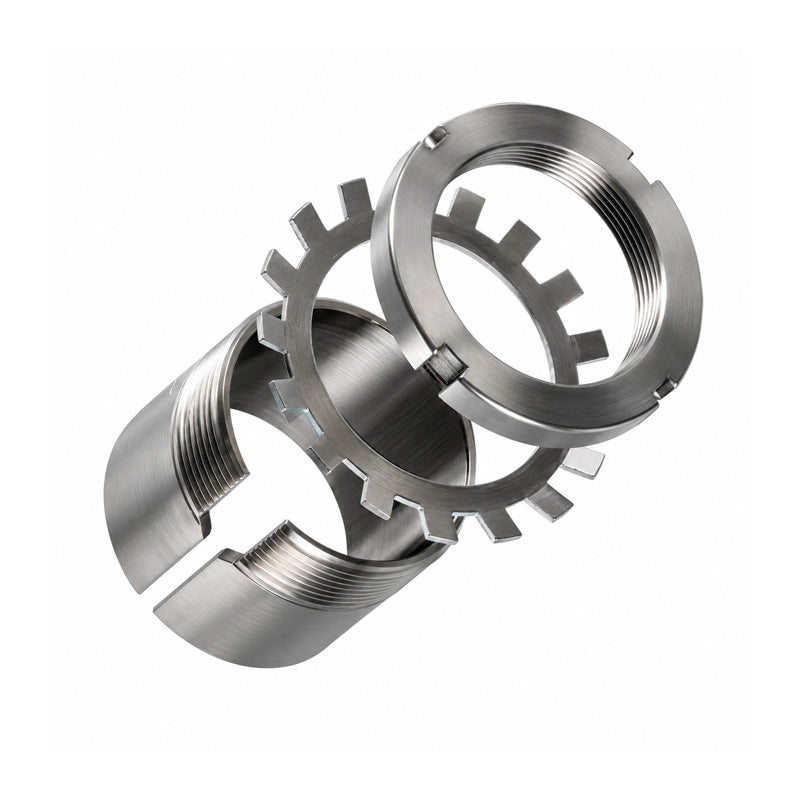

Major Branded H210 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft

Name: Major Branded H210 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
Brand: Major Brand
SKU: H210-MB
Price: 22.00 CHF
Availability: InStock

CHF 22.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 17.56

19+ CHF 16.57

29+ CHF 16.38

39+ CHF 16.18

49+ CHF 15.98

74+ CHF 15.79

99+ CHF 14.80

199+ CHF 14.60

249+ CHF 14.40

499+ CHF 14.21

999+ CHF 13.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 45mm
Outside Diameter:: 70mm
Width:: 35mm

Technical

---	Dimensions
d1	45mm
d	50mm
d3	70mm
B1	35mm
B2	12mm
G	Thread 50x1.5mm
Weight	0.26 kg
---	Assembly Parts
Sleeve	H210
Nut	KM10
Washer	MB10
Hydraulic nut	HMV10E
---	Matching Self Aligning Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1210K+taper+self+open>1210K</a>
