SKU: GY1107-KRR-B-AS2/V-INA

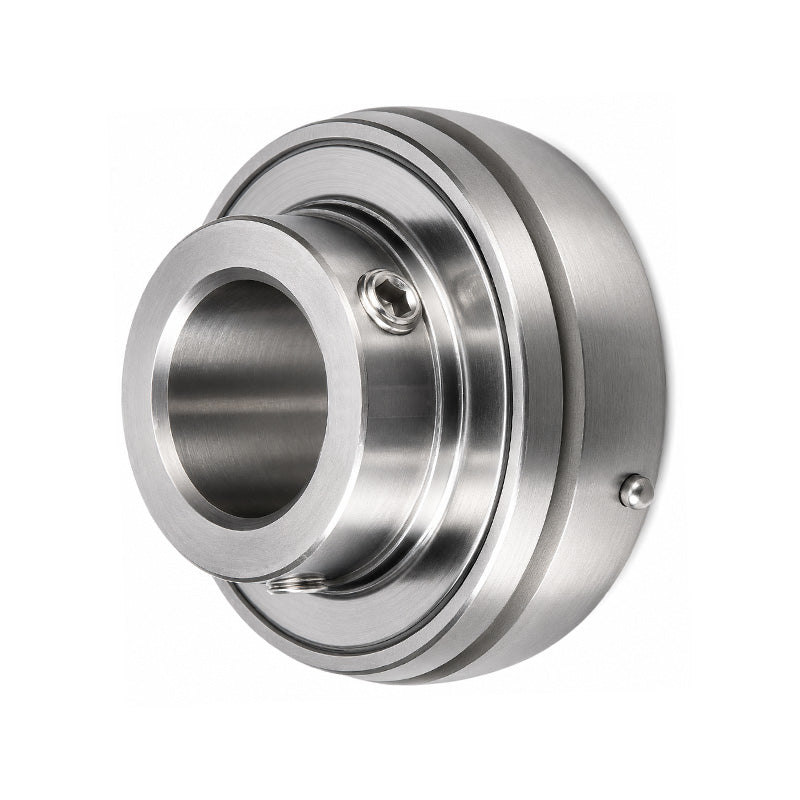

INA GY1107KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 36.51x72x42.9mm
INA GY1107KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 36.51x72x42.9mm
Out of stock
Description
Description
|
INA GY..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 72mm
- Width:
- 42.9mm
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| d | 36.51mm |
| Dsp | 2.8346 inch |
| Dsp | 72mm |
| B | 1.6890 inch |
| B | 42.9mm |
| A | 0.236 inch |
| C | 0.748 inch |
| C2 | 0.886 inch |
| Ca | 0.22 inch |
| D1 | 2.374 inch |
| d1 | 1.843 inch |
| S | 0.689 inch |
| W | 1/8 inch |
| Dynamic load Cr | 5800 lbf |
| Dynamic load Cr | 25500 N |
| Static load C0r | 3450 lbf |
| Static load C0r | 15300 N |
| Weight | 1.08 lbs |
