SKU: GY1014-KRR-B-INA

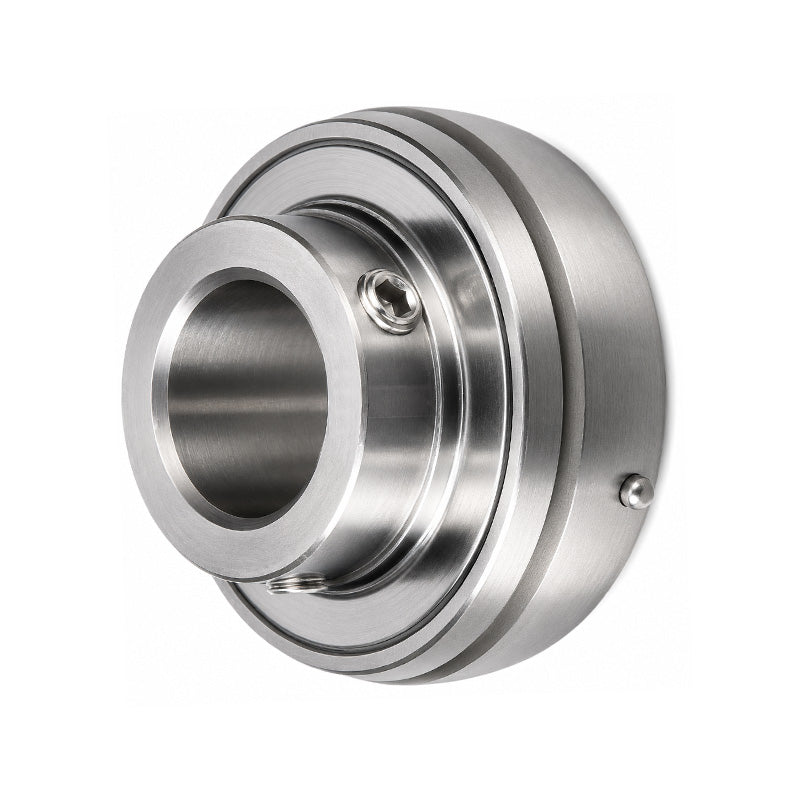

INA GY1014KRRB Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 22.23x52x34.1mm
INA GY1014KRRB Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 22.23x52x34.1mm
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
In stock
Price Break
3+
CHF 15.91
5+
CHF 15.02
10+
CHF 14.84
15+
CHF 14.66
20+
CHF 14.48
30+
CHF 14.30
40+
CHF 13.41
50+
CHF 13.23
60+
CHF 13.05
75+
CHF 12.87
100+
CHF 12.52
Quantity
Couldn't load pickup availability
Description
Description
|
INA GY..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Width:
- 34.1mm
Technical
Technical
| d | 7/8 inch |
|---|---|
| d | 22.23mm |
| Dsp | 2.0472 inch |
| Dsp | 52mm |
| B | 1.3425 inch |
| B | 34.1mm |
| A | 0.197 inch |
| C | 0.591 inch |
| C2 | 0.654 inch |
| Ca | 0.154 inch |
| D1 | 1.673 inch |
| d1 | 1.331 inch |
| S | 0.563 inch |
| W | 3/32 inch |
| Dynamic load Cr | 3150 lbf |
| Dynamic load Cr | 14000 N |
| Static load C0r | 1760 lbf |
| Static load C0r | 7800 N |
| Weight | 0.44 lbs |
