SKU: GVK104-209-KTT-B-AS2/V-INA

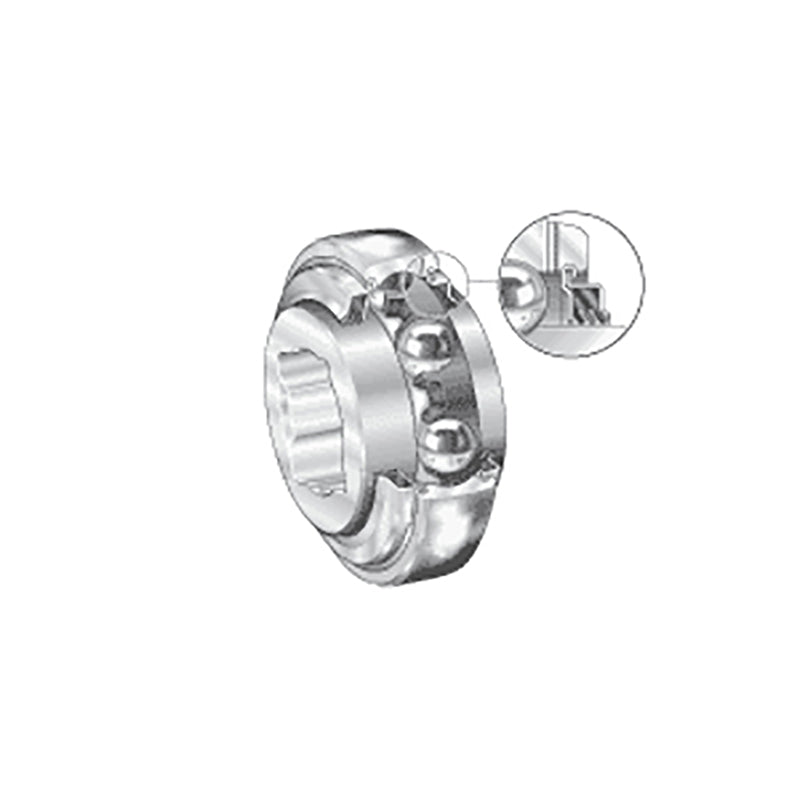

INA GVK104209KTTBAS2V Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/4 inch Bore
INA GVK104209KTTBAS2V Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/4 inch Bore
Out of stock
Description
Description
|

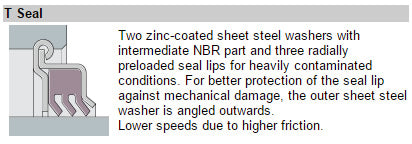

INA GVK..-KTT-B Series Inserts: Bearing insert with spherical outer race, square bore and T seals. Bearings with a profiled bore are used where shafts must transmit very high torques and this is only possible using square or hexagonal shafts. Rotation is prevented by the geometrical locking effect. These bearings have a Corrotect® coating. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 85mm
- Width:
- 36.5mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 31.75mm |
|---|---|
| d | 1-1/4 inch |
| Tolerance | +0.9 / +0.6 |
| Dsp | 85mm |
| B | 36.5mm |
| C | 22mm |
| C2 | 27.4mm |
| Ca | 6.4mm |
| D1 | 72.3mm |
| d1 | 57.9mm |
| F | 44.3mm |
| r | 2.5mm |
| Limiting speed nG Fett | 500 rpm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 20400 N |
| Weight | 0.71 kg |
