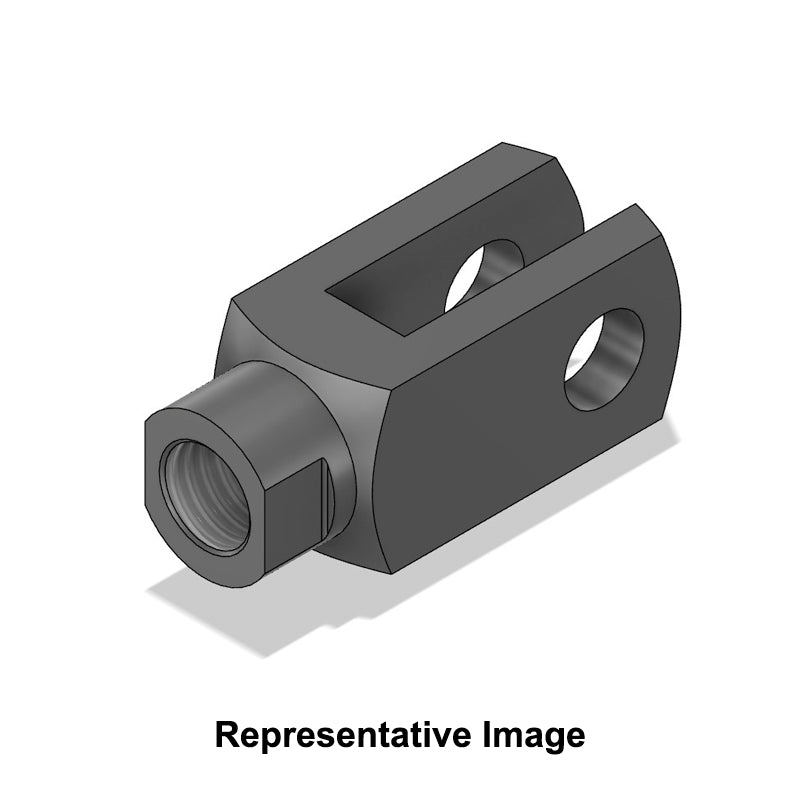

Chiavette GR5X20 Right Hand Female Steel Rotating Clevis 5mm Bore 20mm Base / Bore Center M5x0.8 Thread - Allow 7-10 Days

Chiavette Steel Clevis with Rotating Shaft: A Clevis (also known as a yoke) is a versatile mechanical linkage component commonly used in industrial and mechanical applications. Clevises are paired with a clevis pin (available separately) that fits through the holes at the end of the clevis prongs. Made according to DIN 71752 and crafted from automatic steel (11SMnPb30), these clevises feature a forked end while the opposite end has a female thread for connection to machinery or equipment. Additionally, these types of clevises have a rotating shaft that allows for secure attachment to rods, cables, or other hardware while enabling rotational movement around the attached axis. This rotational capability adds versatility to the clevis, allowing it to accommodate varying angles and positions, enhancing flexibility in mechanical systems.

Brand / Quality:

Chiavette - High Quality

Thread Size:

M5x0.8

Thread M / F:

Female

Thread Direction:

Right Hand

Inside Diameter:

5mm

Length:

36mm

Style:

Rotating Base
