INA GLCTE12XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 12mm Bore
INA GLCTE12XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 12mm Bore
Regular price
CHF 34.00
ex VAT
Regular price
Sale price
CHF 34.00
ex VAT
In stock
Price Break
4+
CHF 26.51
9+
CHF 25.02
19+
CHF 24.73
29+
CHF 24.43
39+
CHF 24.13
49+
CHF 23.83
59+
CHF 22.34
69+
CHF 22.04
79+
CHF 21.75
89+
CHF 21.45
99+
CHF 20.85
Quantity
Couldn't load pickup availability
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Style:
- GLCTE
- Bolt Hole Centres:
- 63.5mm

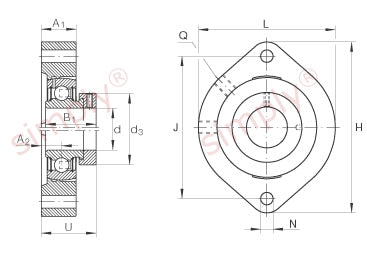

Technical
Technical
| d | 12mm |
|---|---|
| H | 81mm |
| U | 30.5mm |
| A1 | 15mm |
| A2 | 8.4mm |
| B1 | 28.6mm |
| d3 max | 28.4mm |
| J | 63.5mm |
| L | 58.7mm |
| N | 6.6mm |
| Q | M6mm |
| Mass | 0.3 kg |
| Basic dynamic load rating Cr | 10100 N |
| Basic static load rating Cor | 4750 N |
| Designation of housing | GLCTE03 |
| Designation of bearing | GRAE12-XL-NPP-B |
