SKU: GIRS40-FLURO

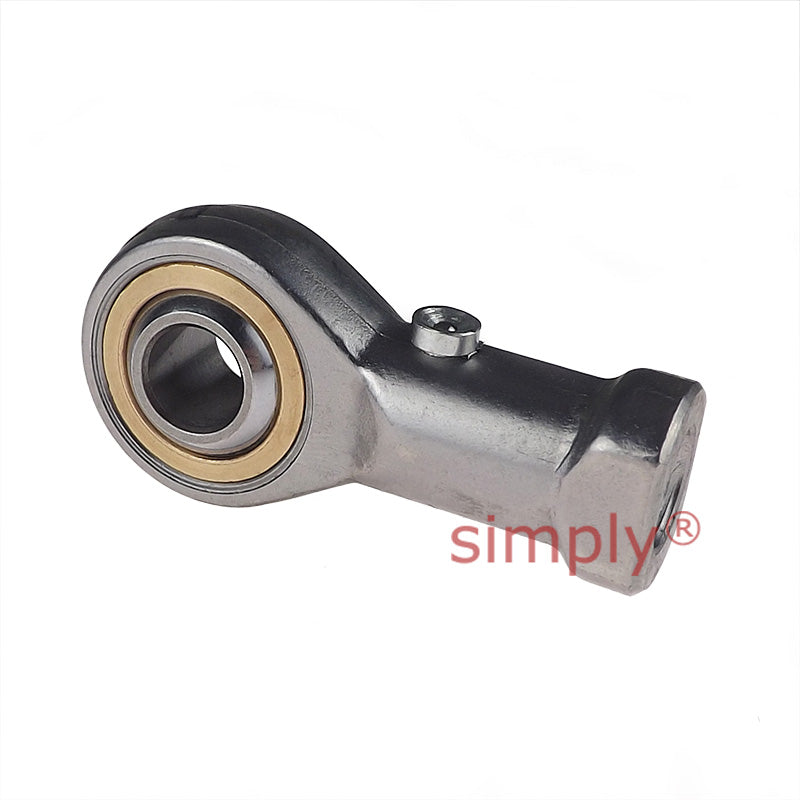

Fluro GIRS40 Right Hand Stainless Steel / Bronze Female Plain Rod End M42x2 Thread
Fluro GIRS40 Right Hand Stainless Steel / Bronze Female Plain Rod End M42x2 Thread
Out of stock
Share this product
Description
Description
Fluro GIRS Series Stainless Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from stainless steel, regreasable through grease nipple in housing. For use in corrosive environments.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M42x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Thread Length:
- 42x2mm
- Inside Diameter:
- 40mm
- Material:
- Stainless Steel / Bronze
Technical
Technical
| Bore Size D | 40mm |
|---|---|
| B | 49mm |
| M | 35mm |
| A | 90mm |
| F | 142mm |
| L | 187mm |
| K | 69mm |
| J | 57mm |
| O | 44.2mm |
| SW | 60mm |
| Thread Size G | M42x2 |
| GL | 60mm |
| Static Load Co | 235kN |
| Dynamic Load | 116kN |
| Limiting Speed | 290rev/min |
| Approx weight | 2.77kg |
