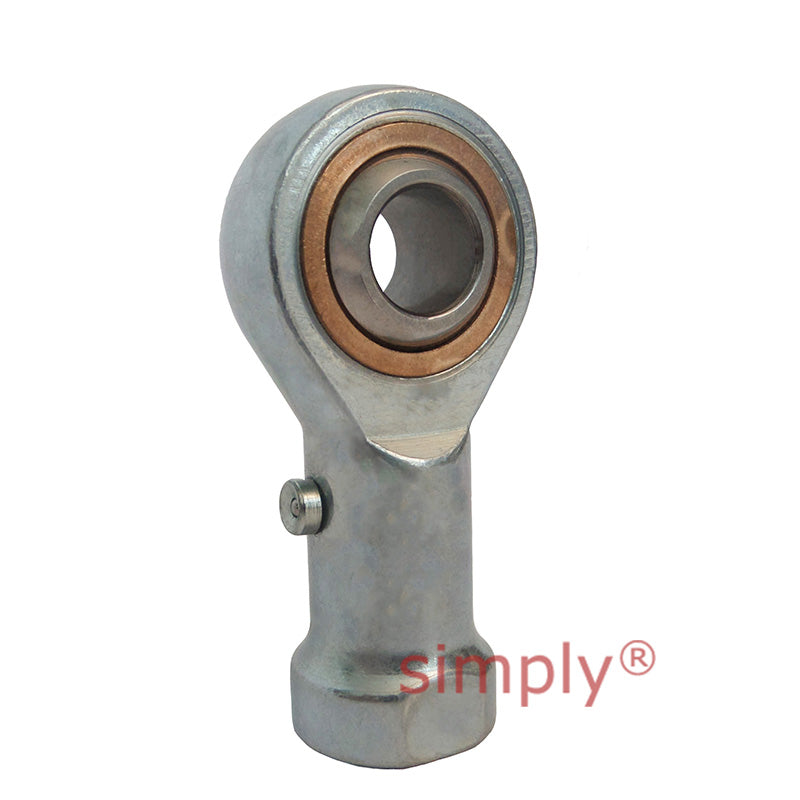

Fluro GILS10 Left Hand Steel / Bronze Female Plain Rod End M10 Thread
Fluro GILS10 Left Hand Steel / Bronze Female Plain Rod End M10 Thread
Out of stock
Share this product
Description
Description
Fluro GIS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from free-cutting or heat-treated steel, zinc plated and fitted with a grease nipple. Especially suited for high speed applications.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M10
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 10mm
- Inside Diameter:
- 10mm
- Material:
- Steel / Bronze
Technical
Technical
| Bore Size D | 10mm |
|---|---|
| B | 14mm |
| M | 10.5mm |
| A | 28mm |
| F | 43mm |
| L | 57mm |
| K | 19mm |
| J | 15mm |
| O | 12.9mm |
| SW | 17mm |
| Thread Size G | M10 |
| GL | 20mm |
| Static Load Co | 19.3kN |
| Dynamic Load | 10kN |
| Limiting Speed | 1000rev/min |
| Approx weight | 0.076kg |
