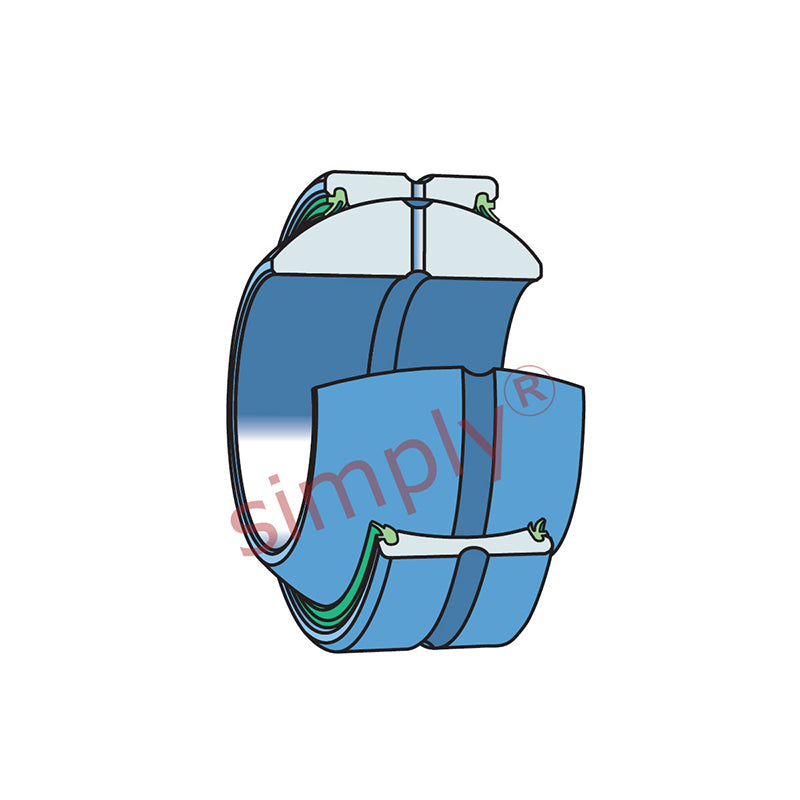

• GEH80ES2RS Sealed Spherical Plain Bearing 80x130x75mm
1 1

SKU: GEH80ES.2RS.EU

GEH80ES2RS Sealed Spherical Plain Bearing 80x130x75mm

GEH80ES2RS Sealed Spherical Plain Bearing 80x130x75mm
CHF 58.00 ex VAT
CHF 58.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 46.24
19+ CHF 43.64
29+ CHF 43.12
39+ CHF 42.60
49+ CHF 42.08
74+ CHF 41.56
99+ CHF 38.97
199+ CHF 38.45
249+ CHF 37.93
499+ CHF 37.41
999+ CHF 36.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CDX_GEHESRS_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
80mm
Outside Diameter:
130mm
Width:
75mm
Technical
d 80mm
D 130mm
B 75mm
C 50mm
α 14°
dk 115mm
b 9.5mm
b1 9.5mm
M 5mm
r1 min 1mm
r2 min 1mm
da min 87.2mm
da max 87.2mm
Da min 112.9mm
Da max 123.5mm
ra max 1mm
rb max 1mm
Basic dynamic load rating C 490 kN
Basic static load rating Co 2450 kN
Specific dynamic load factor K 100 N/mm<sup>2</sup>
Specific static load factor Ko 500 N/mm<sup>2</sup>
Material constant KM 330
Mass 4.1 kg
