SKU: GE90-KRR-B-FA164-INA

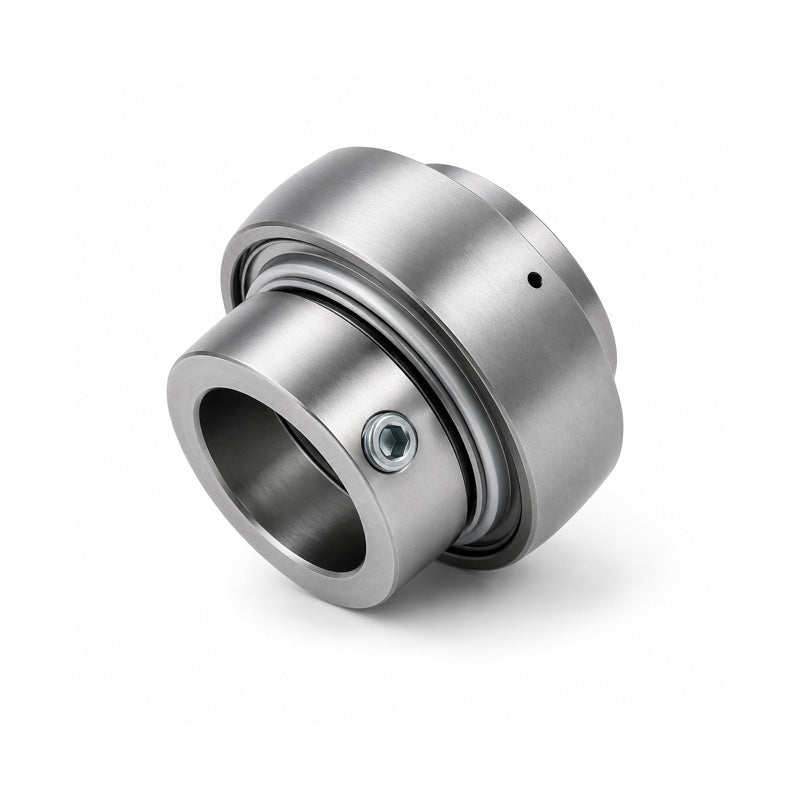

INA GE90KRRBFA164 Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar for temperatures up to 250deg C 90x160x69.5mm
INA GE90KRRBFA164 Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar for temperatures up to 250deg C 90x160x69.5mm
Out of stock
Description
Description
|
INA GE..KRR-B-FA164 Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: +150 deg C to +250 deg C. Benefits: Can be re-lubricated, compensation of misalignment, suitable for high temperatures. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Width:
- 69.5mm
Technical
Technical
| d | 90mm |
|---|---|
| Dsp | 160mm |
| B1 | 69.5mm |
| B | 52mm |
| C | 32mm |
| C2 | 35mm |
| Ca | 10mm |
| D1 | 138mm |
| d1 | 109.4mm |
| d3 max | 118mm |
| S | 23mm |
| W | 6mm |
| Dynamic load Cr | 96000 N |
| Static load C0r | 72000 N |
| Weight | 3.68 kg |
