SKU: GARSW35-FLURO

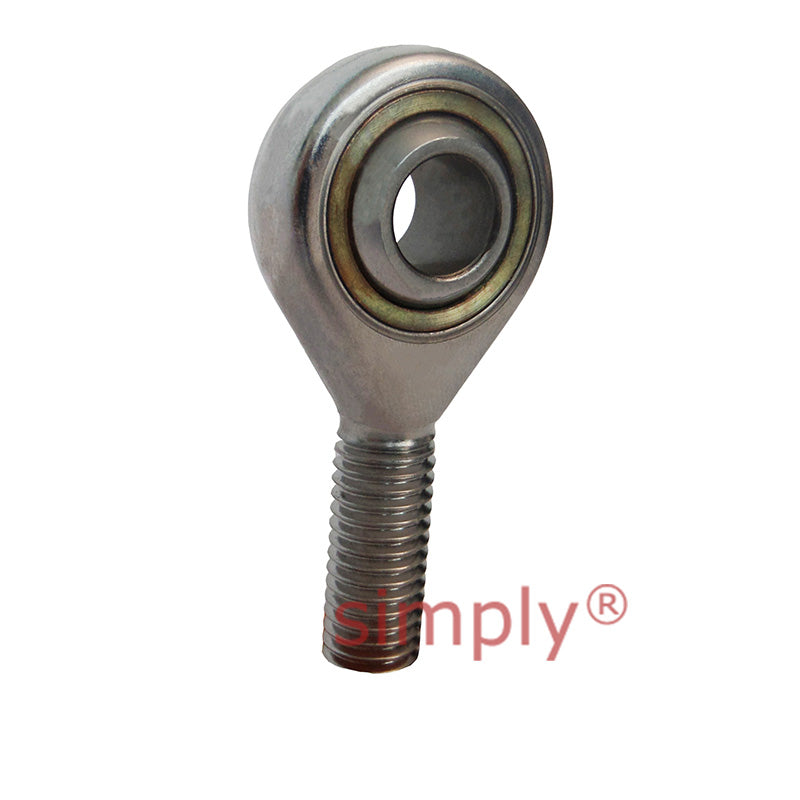

Fluro GARSW35 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M36x2 Thread
Fluro GARSW35 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M36x2 Thread
Out of stock
Share this product
Description
Description
Fluro GARSW Series Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from stainless steel with PTFE liner, maintenance free. For use at high dynamic pressure and tension loads in corrosive environments.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M36x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 36x2mm
- Inside Diameter:
- 35mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 35mm |
|---|---|
| B | 43mm |
| M | 28mm |
| A | 80mm |
| F | 125mm |
| L | 165mm |
| O | 37.7mm |
| Thread Size G | M36x2 |
| GL | 73mm |
| Static Load Co | 191kN |
| Dynamic Load | 206kN |
| Limiting Speed | 110rev/min |
| Approx weight | 1.6kg |
