SKU: GARSW25-FLURO

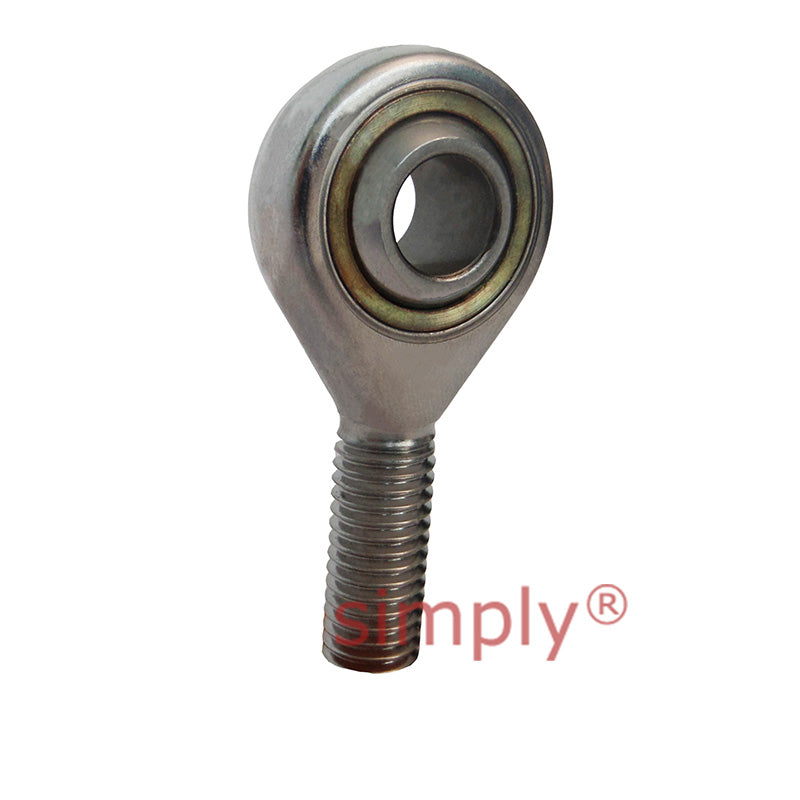

Fluro GARSW25 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M24x2 Thread
Fluro GARSW25 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M24x2 Thread
Out of stock
Share this product
Description
Description
Fluro GARSW Series Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from stainless steel with PTFE liner, maintenance free. For use at high dynamic pressure and tension loads in corrosive environments.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M24x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 24x2mm
- Inside Diameter:
- 25mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 25mm |
|---|---|
| B | 31mm |
| M | 22mm |
| A | 60mm |
| F | 94mm |
| L | 124mm |
| O | 29.6mm |
| Thread Size G | M24x2 |
| GL | 57mm |
| Static Load Co | 118kN |
| Dynamic Load | 122kN |
| Limiting Speed | 150rev/min |
| Approx weight | 0.6kg |
